Individual hose record

KHJ2076 Hose Repair Specifications

Excavator · Case · CX370D LC · Swivel Joint

Finished length2,750 mm

Locate this hose

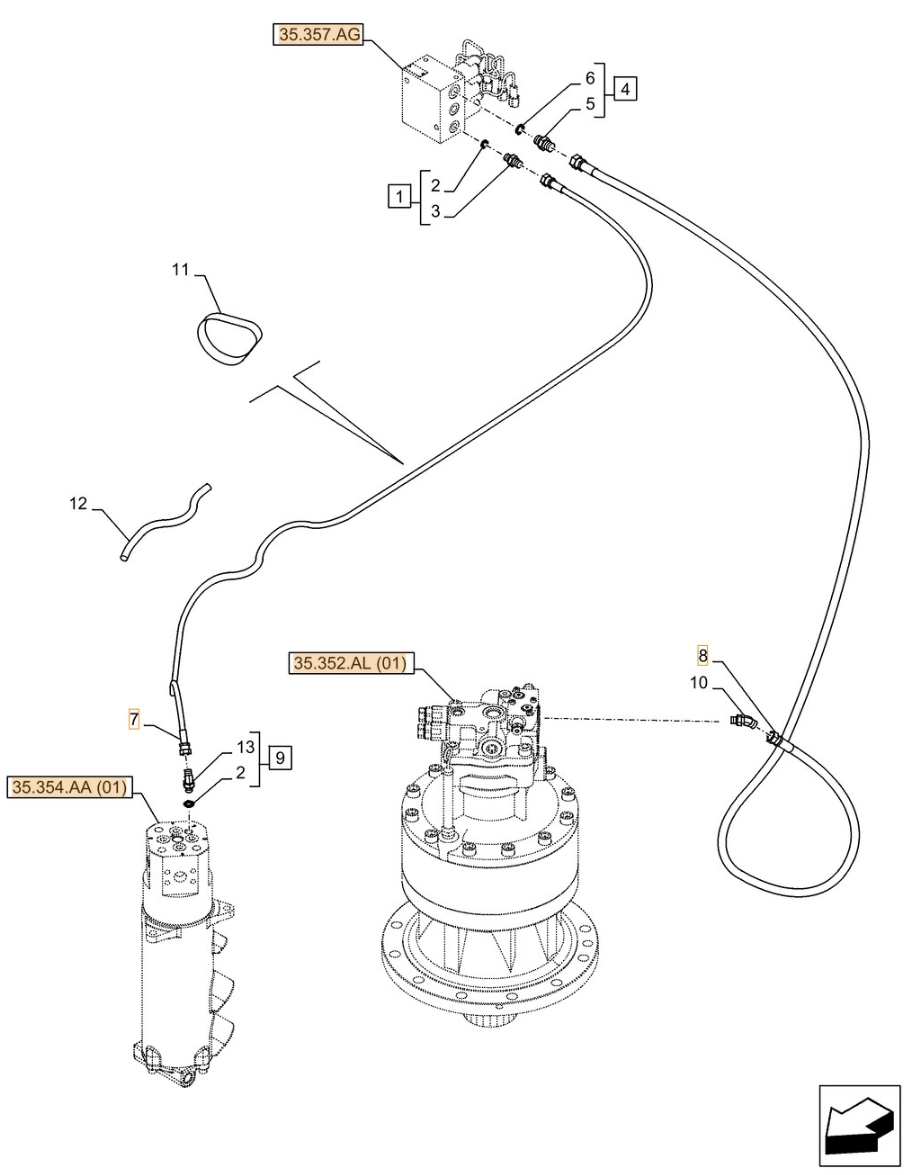

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number KHJ2076 before removing the hose.

Part number: KHJ2076
Diagram pipe number: 7
Installation route: 回转接头~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,750 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 14

Installation route: 回转接头~回转马达(回油)

Length: 880 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 13

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,500 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 11

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
