Individual hose record
9268707 Hose Repair Specifications
Excavator · Hitachi · ZX270LC-3 · Attachments – Lock Valve
Finished length1,900 mm
Locate this hose

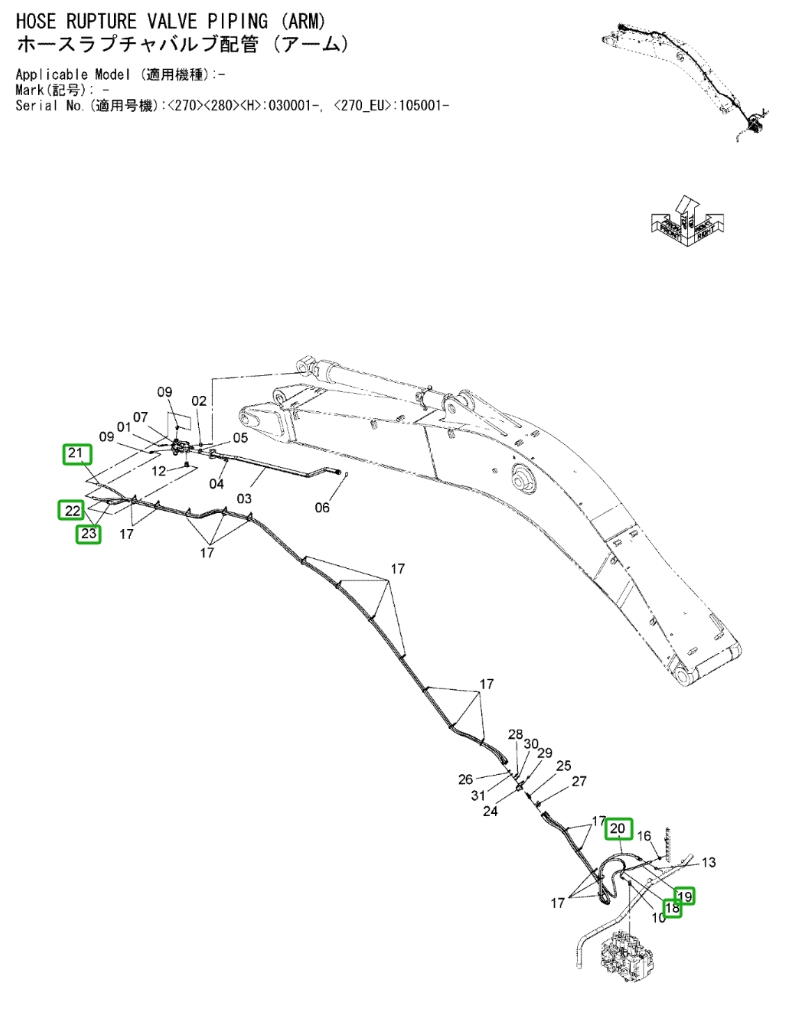

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 9268707 before removing the hose.
Repair specifications
- Part number
- 9268707
- Diagram pipe number
- 19
- Installation route
- 液压油箱~接线板(锁止阀)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
