Individual hose record

DS2094122 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments – Quick Coupler

Finished length1,250 mm

Locate this hose

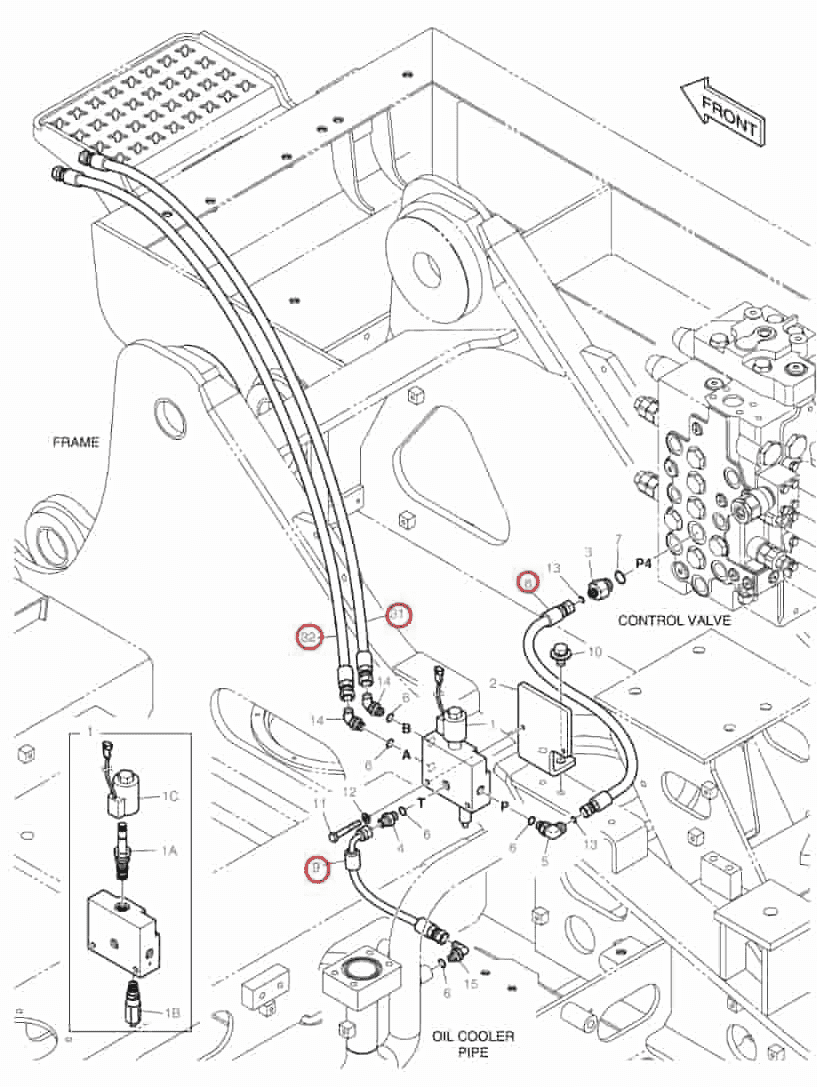

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number DS2094122 before removing the hose.

Part number: DS2094122
Diagram pipe number: 32
Installation route: 大臂(快换)~快速联轴阀A口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,250 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 9

Installation route: Quick-coupler valve port T → return steel line (control valve)Original Chinese: 快速联轴阀T口~回油铁管(分配阀)

Length: 260 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 31

Installation route: 大臂(快换)~快速联轴阀B口

Length: 1,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: 大臂(快换)~快速联轴阀

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
