Individual hose record

2184-1026D346 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments – Quick Coupler

Finished length1,200 mm

Locate this hose

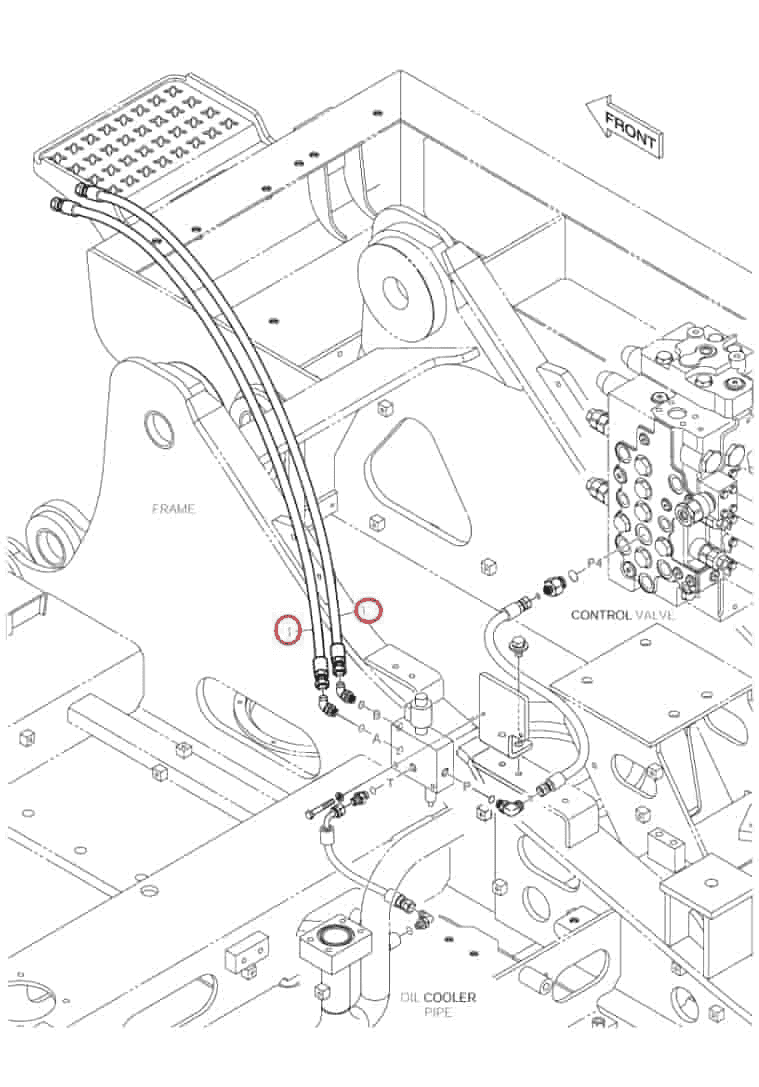

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 2184-1026D346 before removing the hose.

Part number: 2184-1026D346
Diagram pipe number: 1
Installation route: 大臂(快换)~快速联轴阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 9

Installation route: Quick-coupler valve port T → return steel line (control valve)Original Chinese: 快速联轴阀T口~回油铁管(分配阀)

Length: 260 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 31

Installation route: 大臂(快换)~快速联轴阀B口

Length: 1,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 32

Installation route: 大臂(快换)~快速联轴阀A口

Length: 1,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
