Individual hose record
4456135 Hose Repair Specifications
Excavator · Hitachi · ZX345USLC-6N · Pedal
Finished length3,900 mm
Locate this hose

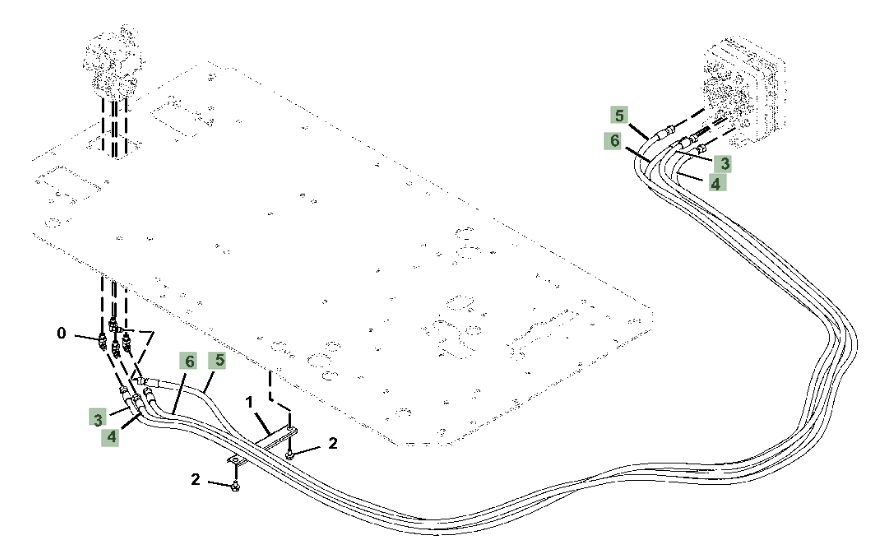

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4456135 before removing the hose.
Repair specifications
- Part number
- 4456135
- Diagram pipe number
- 4
- Installation route
- 行走踏板~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
