Individual hose record
4378646 Hose Repair Specifications
Excavator · Hitachi · EX110-5 · Attachments
Finished length430 mm
Locate this hose

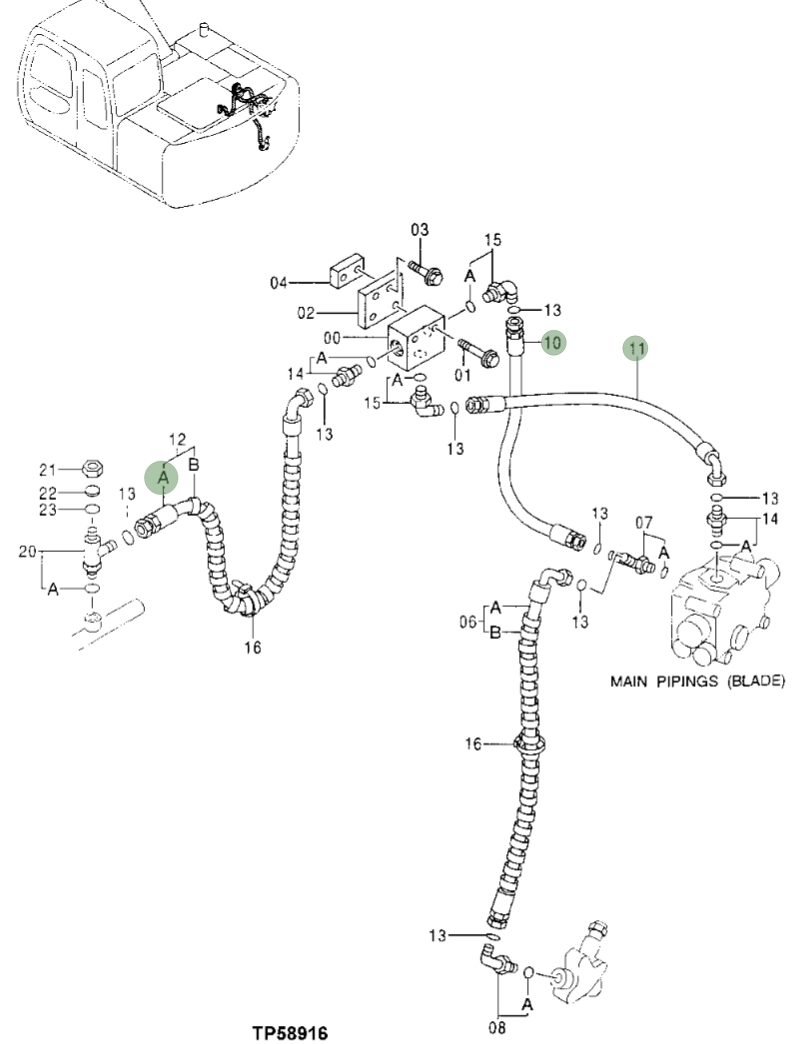

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4378646 before removing the hose.
Repair specifications
- Part number
- 4378646
- Diagram pipe number
- 10
- Installation route
- 控制阀(推土铲)~过渡阀块(推土铲)
- Hose specification
- DN12;1SN-8;7MPa
- Finished length
- 430 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
