Individual hose record
KRJ11540 Hose Repair Specifications
Excavator · Case · CX210E LC · Hydraulic Pump
Finished length670 mm
Locate this hose

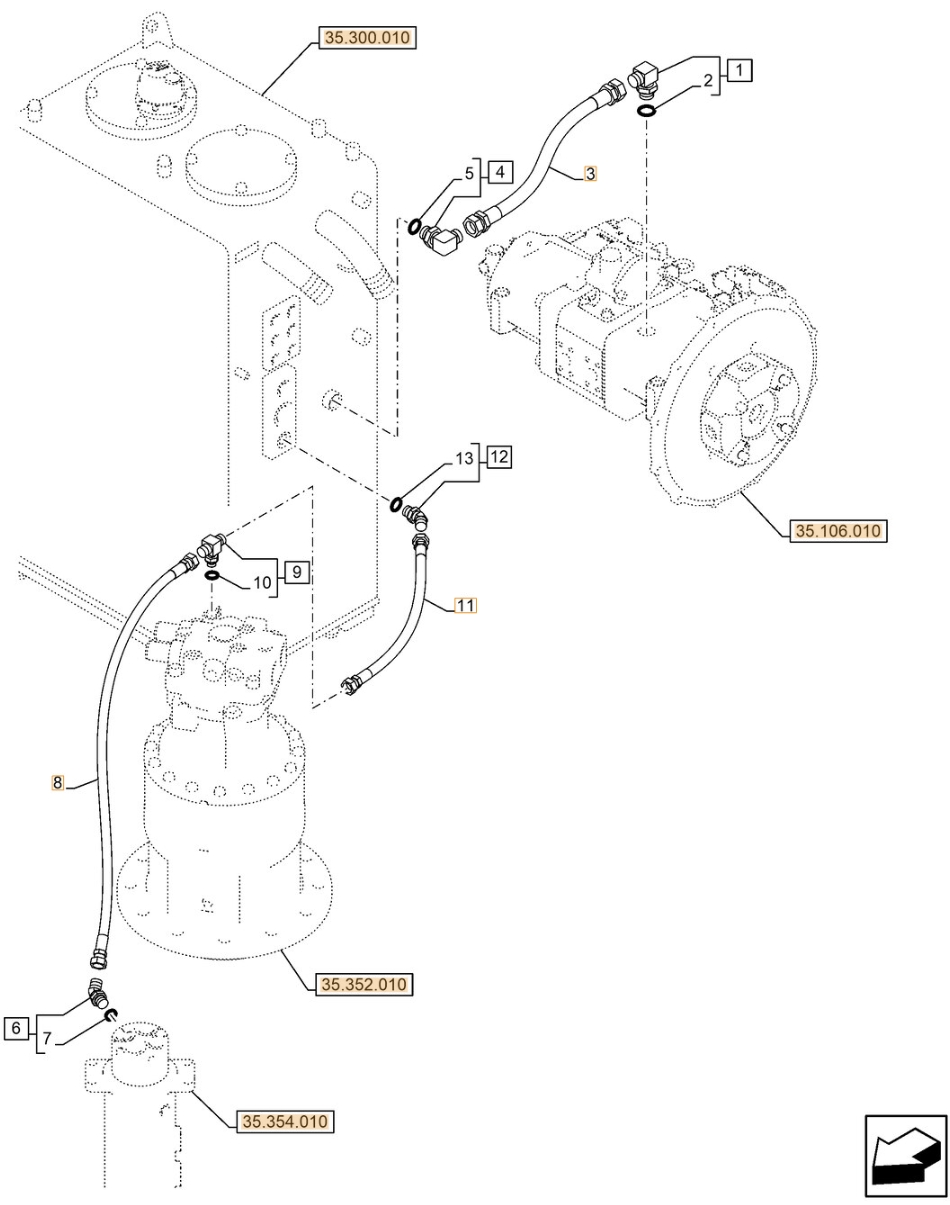

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number KRJ11540 before removing the hose.
Repair specifications
- Part number
- KRJ11540
- Diagram pipe number
- 3
- Installation route
- 液压泵~液压油箱
- Hose specification
- DN19;4SH-12;42.0MPa
- Finished length
- 670 mm
- Working pressure
- 42 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
