Individual hose record

4649408 Hose Repair Specifications

Excavator · Hitachi · ZX135US-5N · Attachments – Breaker

Finished length1,150 mm

Locate this hose

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 4649408 before removing the hose.

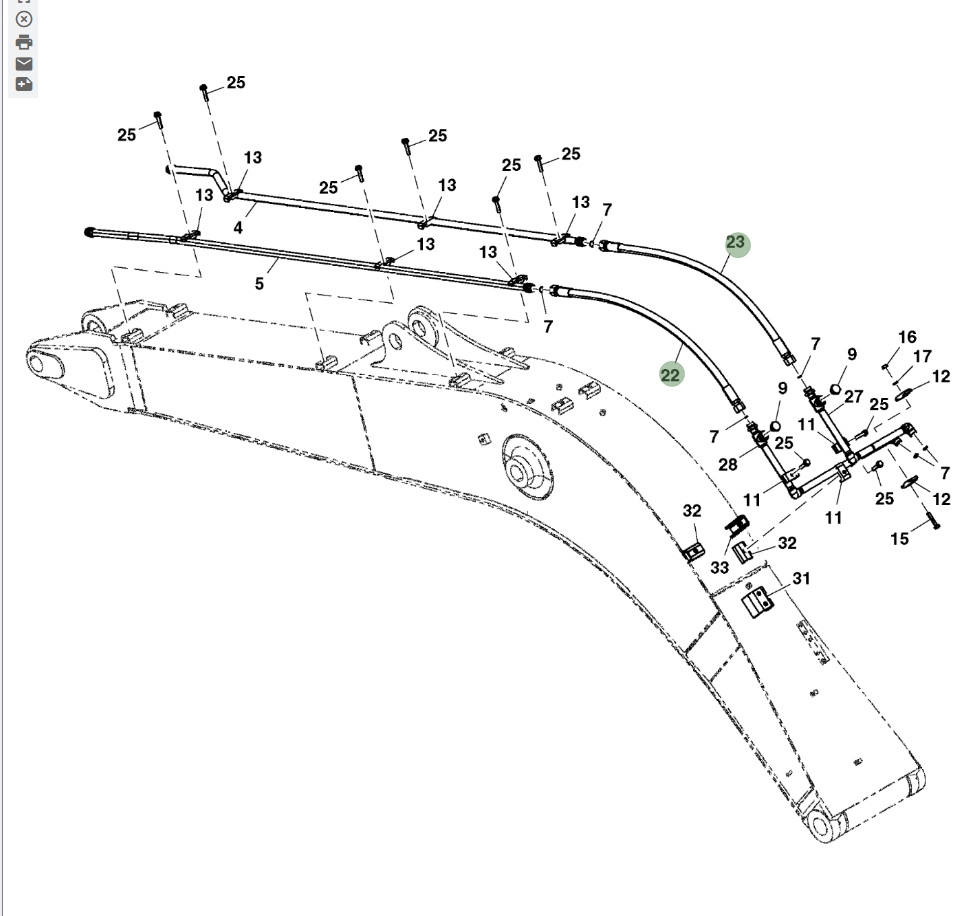

Hitachi ZX135US-5N installation diagram showing hydraulic hose 4649408 at Pipe No. 22 — Hitachi ZX135US-5NPart 4649408 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 4649408
Diagram pipe number: 22
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN19;4SP-12;34.5Mpa
Finished length: 1,150 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

4710223

Installation route: 过渡阀块(破碎器)~液压油箱

Length: 600 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4630935

Installation route: 中转接头~分配阀下

Length: 900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 29

4659385

Installation route: 分配阀上~电磁阀

Length: 1,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 24

4402701

Installation route: 过渡阀块(破碎器)~电磁阀(分配阀)

Length: 720 mm
Specification: DN6;1SN-4;7MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

FF531999

Installation route: 电磁阀(破碎器)~进回油阀

Length: 2,670 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
