Individual hose record
4197700 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Control Valve
Finished length950 mm
Locate this hose

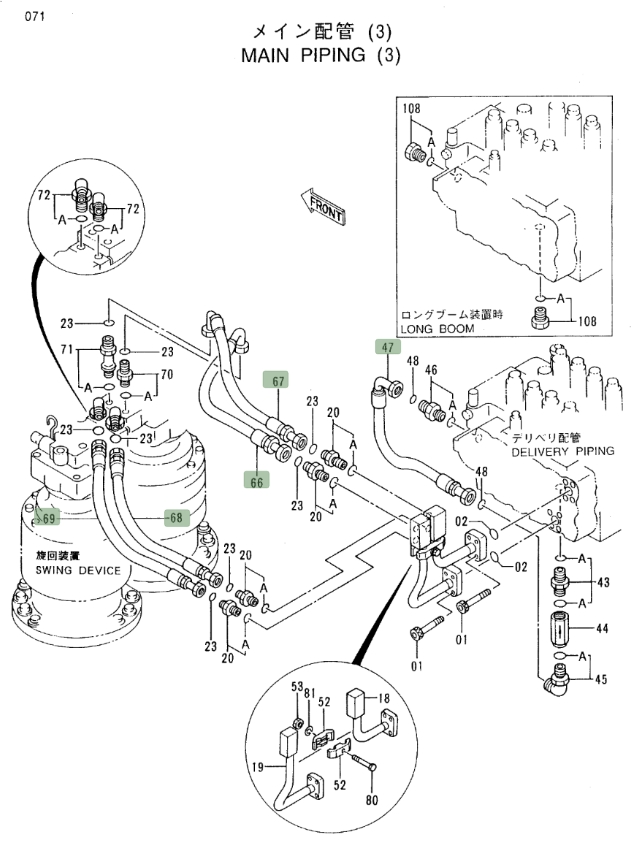

Installation diagram — Pipe No. 69
Locate Pipe No. 69 in the diagram, then confirm part number 4197700 before removing the hose.
Repair specifications
- Part number
- 4197700
- Diagram pipe number
- 69
- Installation route
- 分配阀左~回转马达(左)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 950 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
