Individual hose record
4319149 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Control Valve
Finished length3,600 mm
Locate this hose

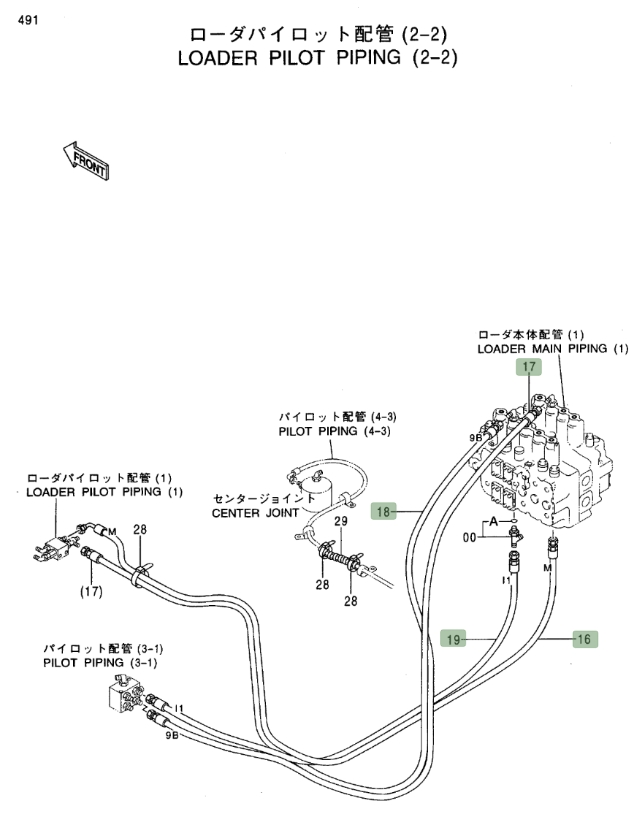

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4319149 before removing the hose.
Repair specifications
- Part number
- 4319149
- Diagram pipe number
- 17
- Installation route
- 分配阀上右~过渡阀块(分配阀)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
