Individual hose record

4442331 Hose Repair Specifications

Excavator · Hitachi · ZX50U-5N · Attachments – Breaker

Finished length500 mm

Locate this hose

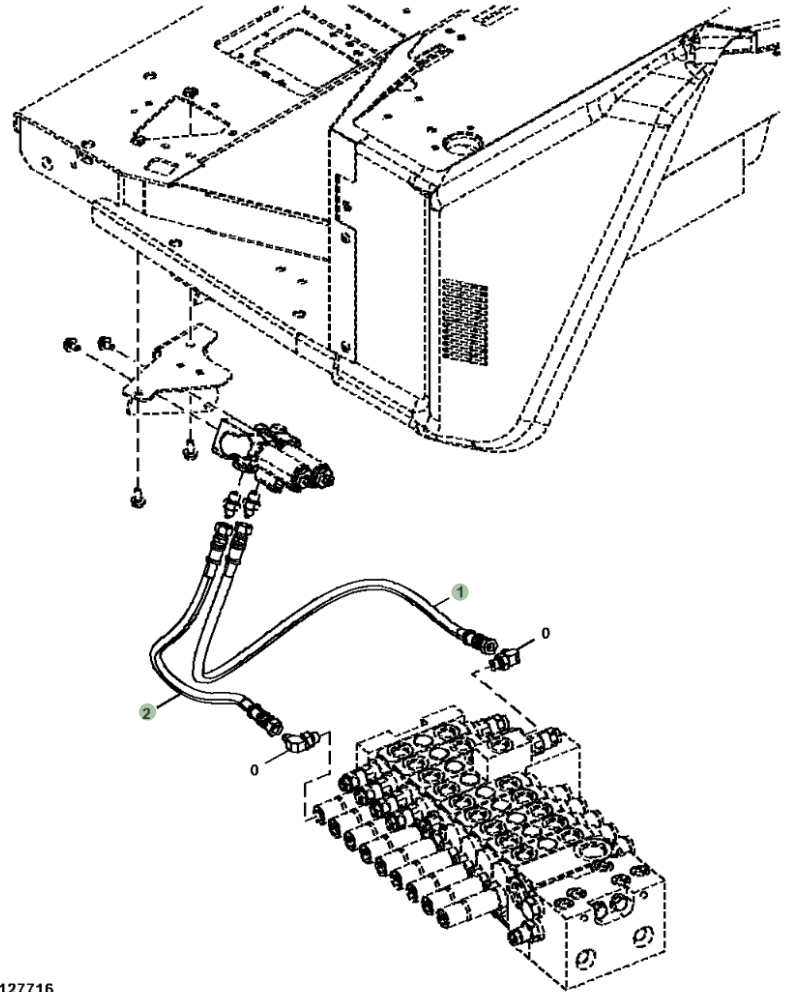

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4442331 before removing the hose.

Hitachi ZX50U-5N installation diagram showing hydraulic hose 4442331 at Pipe No. 2 — Hitachi ZX50U-5NPart 4442331 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4442331
Diagram pipe number: 2
Installation route: 破碎器踏板~分配阀左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 500 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
