Individual hose record
4703562 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5A · Boom Assembly
Finished length1,850 mm
Locate this hose

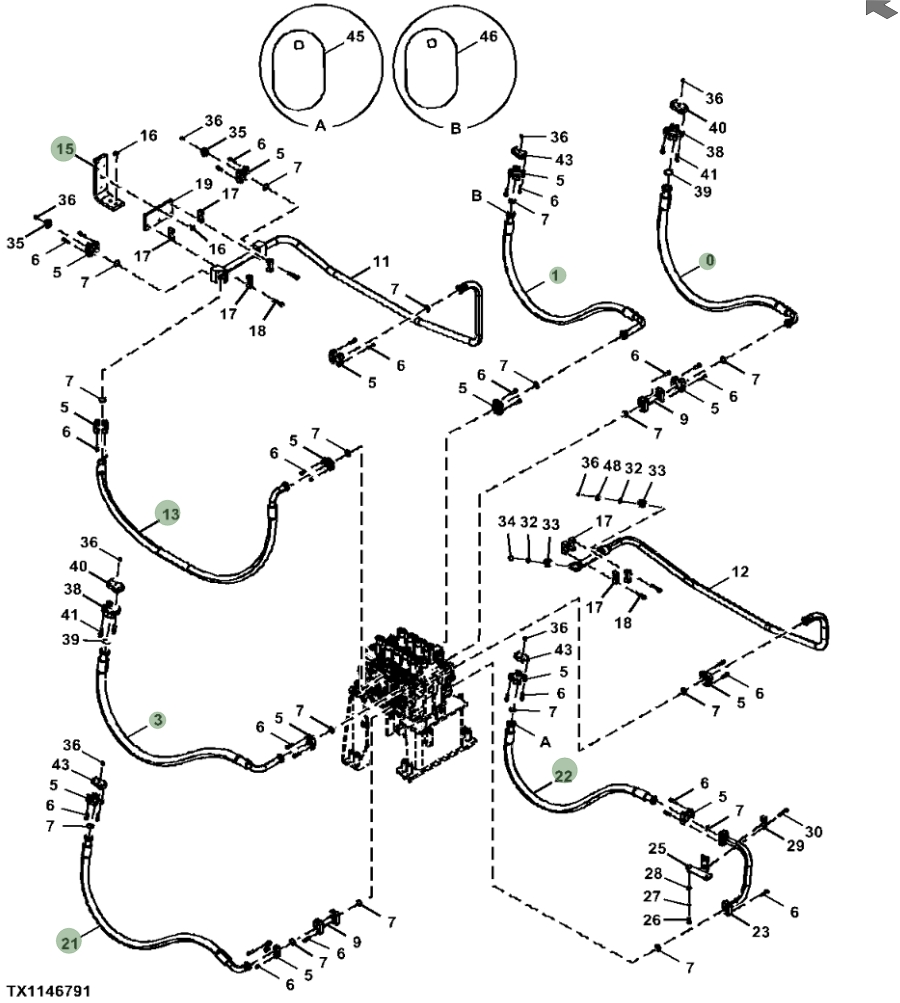

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4703562 before removing the hose.
Repair specifications
- Part number
- 4703562
- Diagram pipe number
- 22
- Installation route
- 大臂左3
- Hose specification
- DN32;4SP-20;35Mpa
- Finished length
- 1,850 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
