Individual hose record

DS2121166 Hose Repair Specifications

Excavator · Doosan · DX160W-3 · Swivel Joint

Finished length1,470 mm

Locate this hose

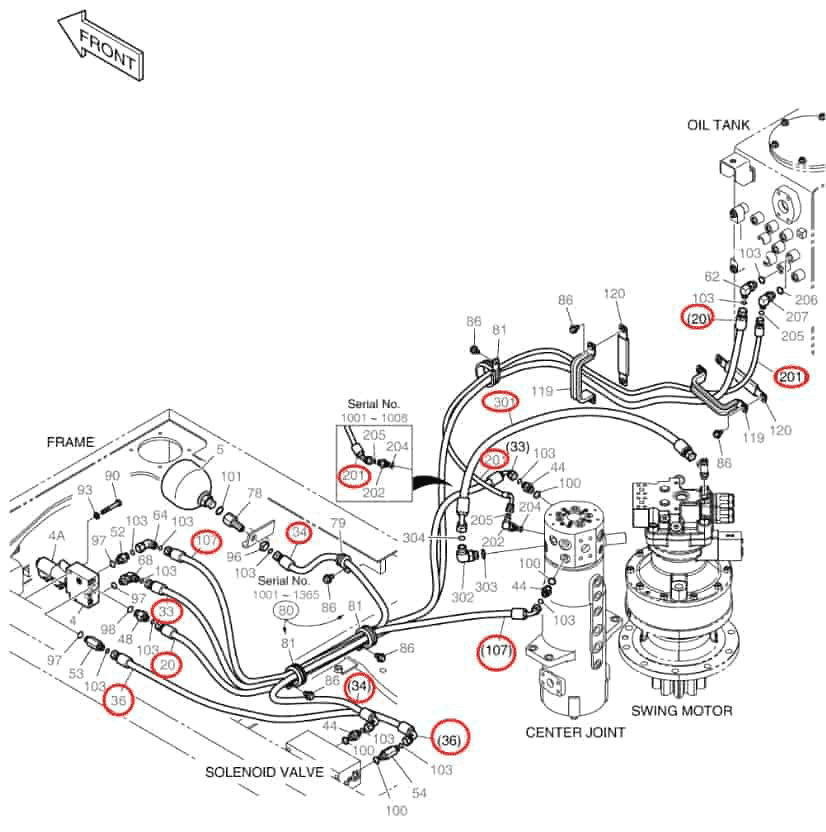

Installation diagram — Pipe No. 107

Locate Pipe No. 107 in the diagram, then confirm part number DS2121166 before removing the hose.

Part number: DS2121166
Diagram pipe number: 107
Installation route: 回转接头~变速箱控制阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,470 mm
Working pressure: 18 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 回转接头3口~楔形阀

Length: 1,740 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 7

Installation route: 回转接头12口~行走马达S口

Length: 750 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 回转接头2口~行走马达X口

Length: 950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 130

Installation route: 回转接头5口~分配阀PTP口

Length: 830 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
