Individual hose record
4656027 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-5G · Control Lever
Finished length3,250 mm
Locate this hose

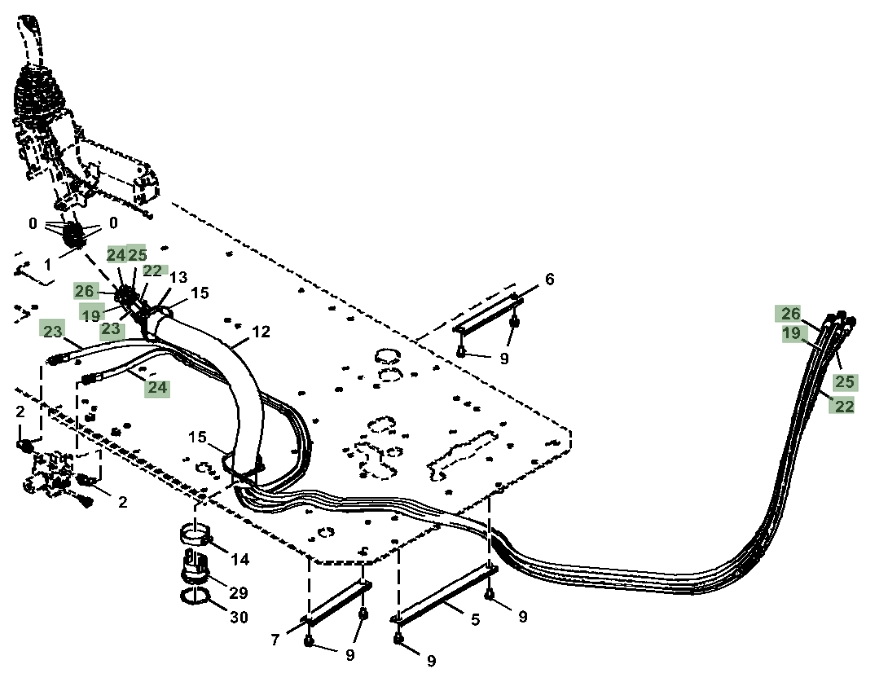

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4656027 before removing the hose.
Repair specifications
- Part number
- 4656027
- Diagram pipe number
- 19
- Installation route
- 左手柄~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 3,300 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,800 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 360 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,700 mm
- Specification
- DN10;1SN-6;18MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Length
- 2,200 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 1,050 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
- Length
- 3,200 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
