Individual hose record

DS2038221 Hose Repair Specifications

Excavator · Doosan · DX160LC · Hydraulic Tank

Finished length610 mm

Locate this hose

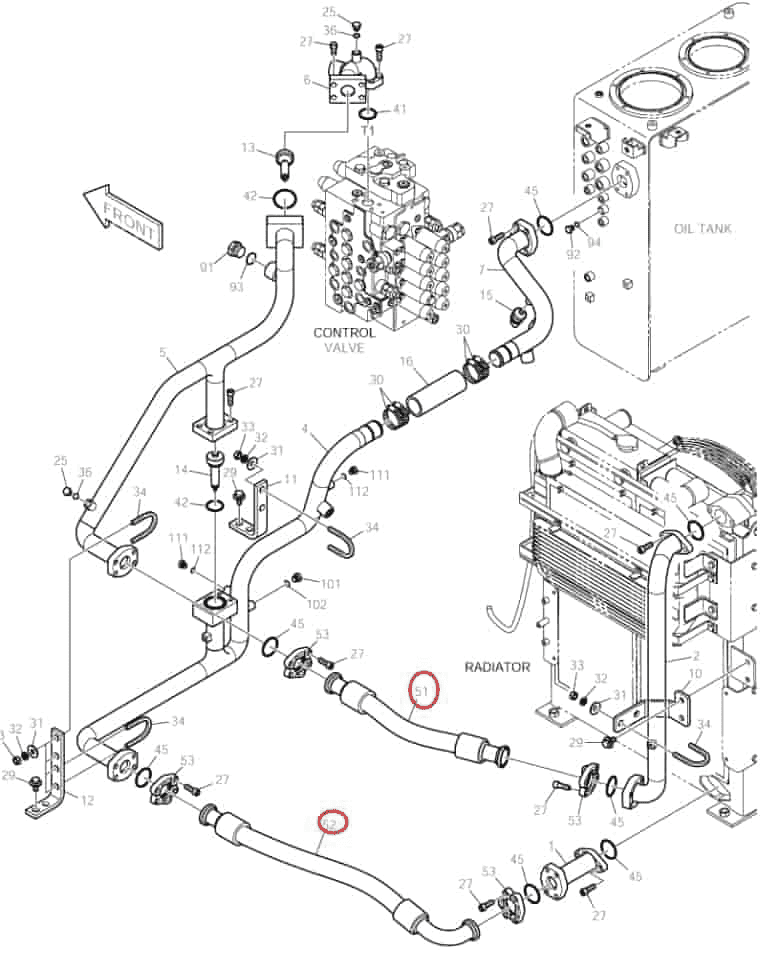

Installation diagram — Pipe No. 51

Locate Pipe No. 51 in the diagram, then confirm part number DS2038221 before removing the hose.

Doosan DX160LC installation diagram showing hydraulic hose DS2038221 at Pipe No. 51 — Doosan DX160LCPart DS2038221 · Pipe No. 51Open full-size diagram

Repair specifications

Part number: DS2038221
Diagram pipe number: 51
Installation route: 回油铁管(液压油箱)~散热器
Hose specification: DN38;2SN-24;9MPa
Finished length: 610 mm
Working pressure: 9 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1
