Individual hose record

DS20551380 Hose Repair Specifications

Excavator · Doosan · DX62R-3 · Attachments – Quick Coupler

Finished length830 mm

Locate this hose

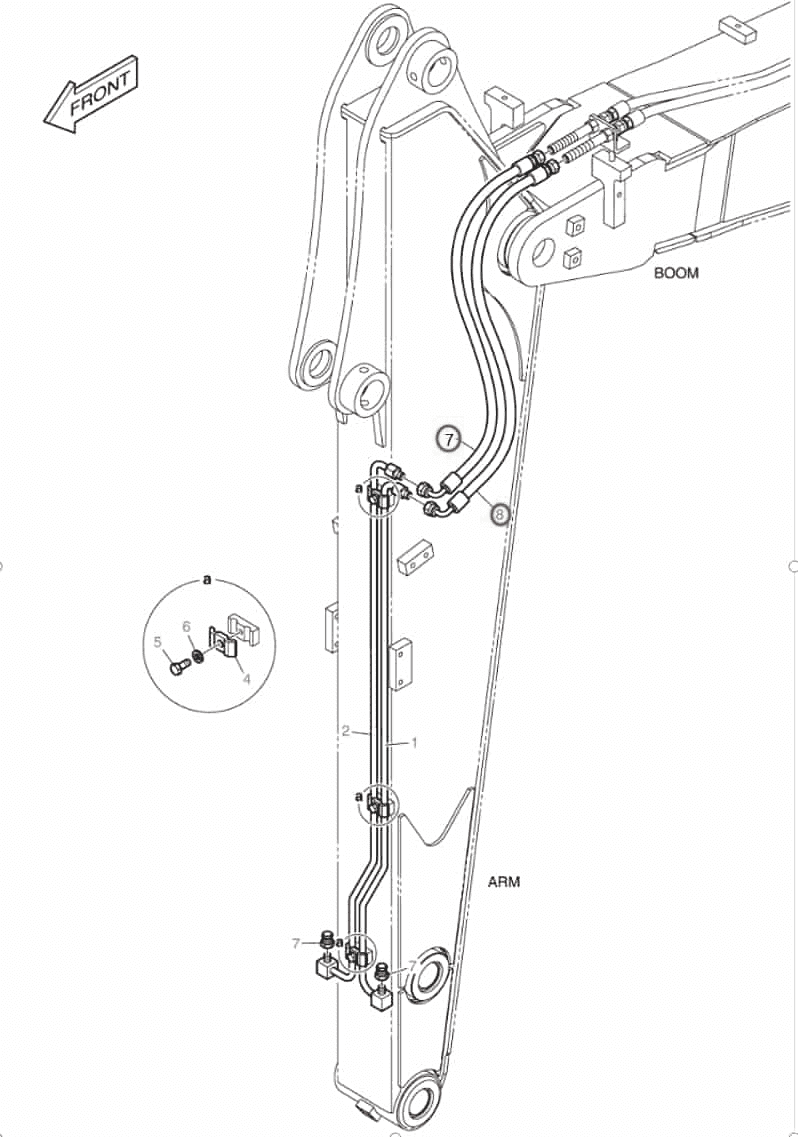

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number DS20551380 before removing the hose.

Doosan DX62R-3 installation diagram showing hydraulic hose DS20551380 at Pipe No. 7 — Doosan DX62R-3Part DS20551380 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: DS20551380
Diagram pipe number: 7
Installation route: 大臂(快换)~小臂(快换)
Hose specification: 35MPa
Finished length: 830 mm
Working pressure: 35 MPa
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

DS20551379

Installation route: 大臂(快换)~小臂(快换)

Length: 800 mm
Specification: 35MPa
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹
