Individual hose record

4650515 Hose Repair Specifications

Excavator · Hitachi · ZX210F-LL-6N · Hydraulic Pump

Finished length3,100 mm

Locate this hose

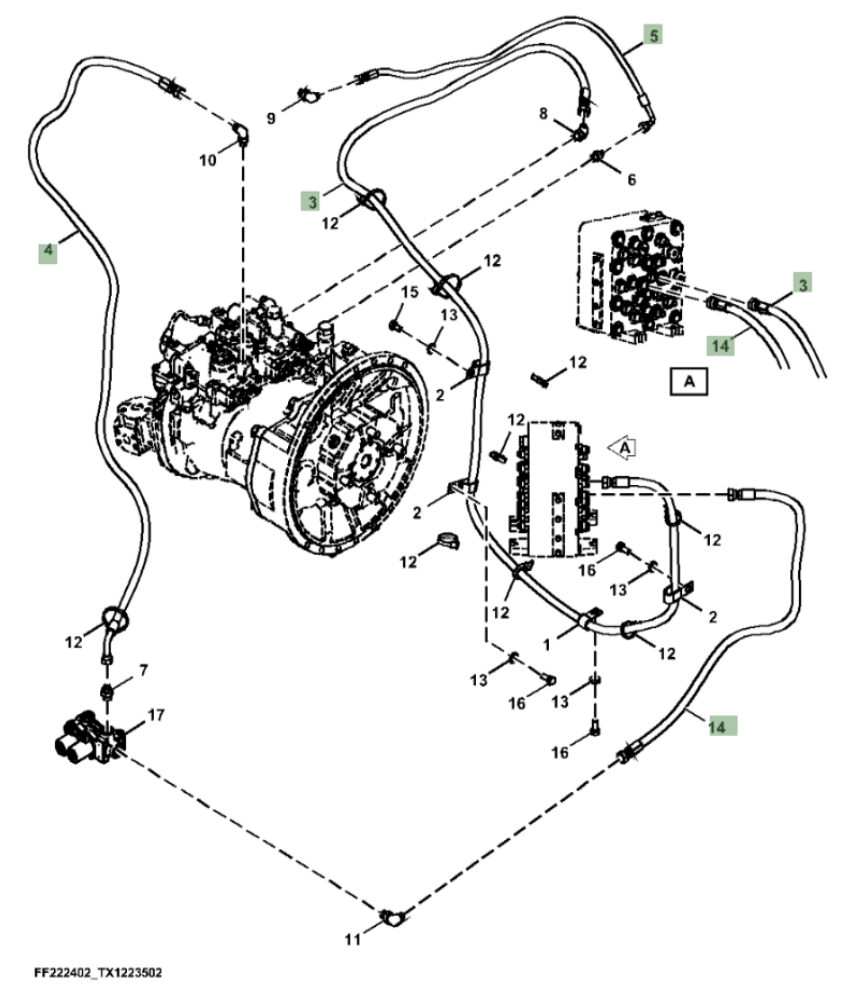

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 4650515 before removing the hose.

Hitachi ZX210F-LL-6N installation diagram showing hydraulic hose 4650515 at Pipe No. 3 — Hitachi ZX210F-LL-6NPart 4650515 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 4650515
Diagram pipe number: 3
Installation route: 液压泵~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,100 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 4

4715840

Installation route: 液压泵~电磁阀(液压泵)

Length: 1,900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
