Individual hose record

159211A1 Hose Repair Specifications

Excavator · Case · CX470C · Control Lever

Finished length2,000 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 159211A1 before removing the hose.

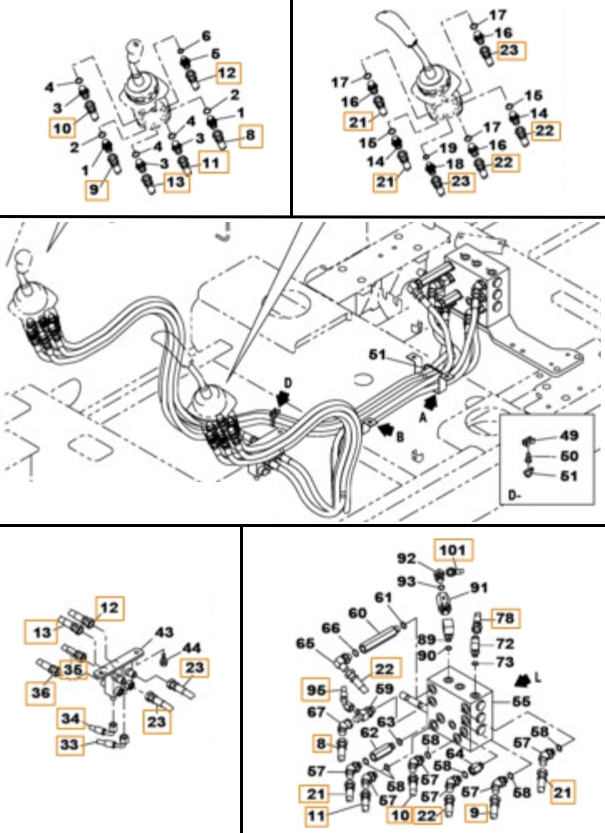

Case CX470C installation diagram showing hydraulic hose 159211A1 at Pipe No. 8 — **Case CX470C**Part 159211A1 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 159211A1
Diagram pipe number: 8
Installation route: 右手柄~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,000 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
