Individual hose record
4437927 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Hydraulic Pump
Finished length400 mm
Locate this hose

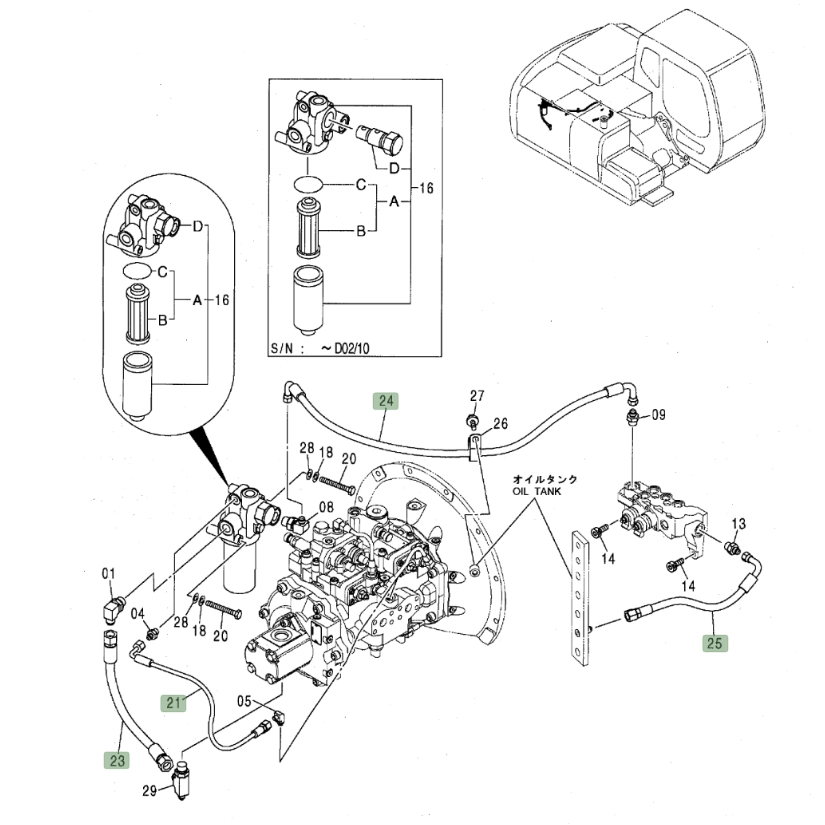

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4437927 before removing the hose.
Repair specifications
- Part number
- 4437927
- Diagram pipe number
- 23
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 400 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
