KHJ2082 Hose Repair Specifications

Excavator · Case · CX490D LC · Grease Lines

Finished length3,400 mm

Locate this hose

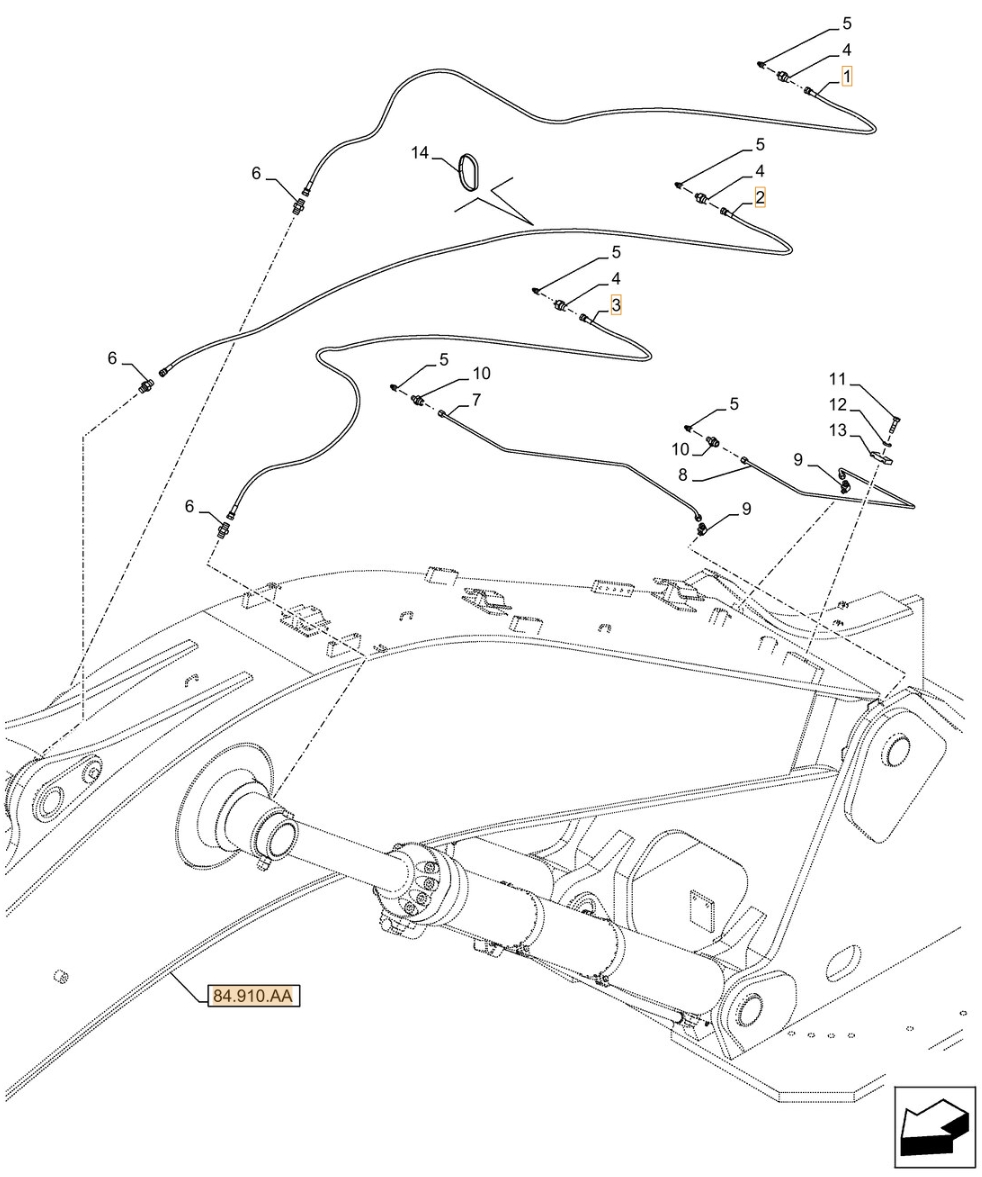

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number KHJ2082 before removing the hose.

Case CX490D LC installation diagram showing hydraulic hose KHJ2082 at Pipe No. 1
Case CX490D LCPart KHJ2082 · Pipe No. 1Open full-size diagram

Repair specifications

Part number
KHJ2082
Diagram pipe number
1
Installation route
Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification
DN6;1SN-04;22.5MPa
Finished length
3,400 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
1
