Individual hose record

4606397 Hose Repair Specifications

Excavator · Hitachi · ZX670LC-5B · Attachments

Finished length630 mm

Locate this hose

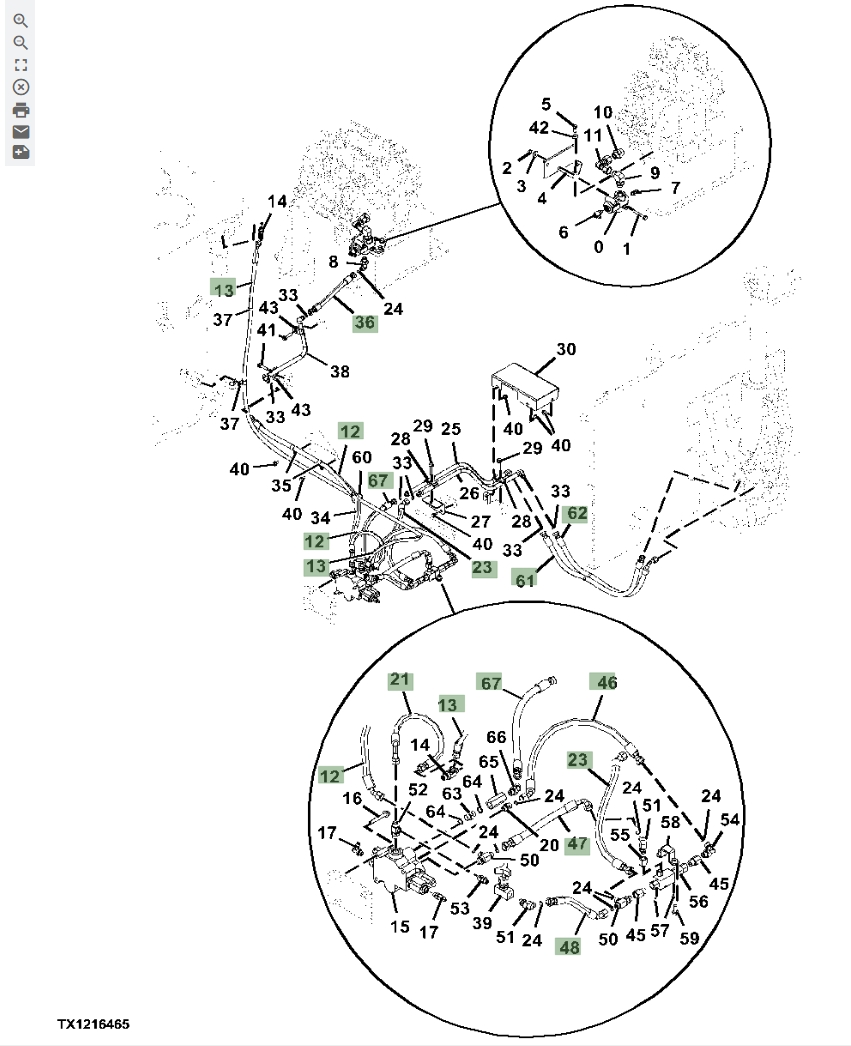

Installation diagram — Pipe No. 67

Locate Pipe No. 67 in the diagram, then confirm part number 4606397 before removing the hose.

Part number: 4606397
Diagram pipe number: 67
Installation route: 控制阀(配重自卸)~铁管(配重自卸)
Hose specification: DN12;4SP-8;34.5Mpa
Finished length: 630 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 36

Installation route: 过渡阀块(配重自卸)~铁管(配重自卸)

Length: 410 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 14

Installation route: 控制阀(配重自卸)~过渡阀块(配重自卸)

Diagram Pipe No. 12

Installation route: 配重自卸手柄~过渡阀块(配重自卸)

Diagram Pipe No. 18

Installation route: 液压油箱~过渡阀块(配重自卸)
