Individual hose record

4431841 Hose Repair Specifications

Excavator · Hitachi · ZX800 · Attachments

Finished length3,150 mm

Locate this hose

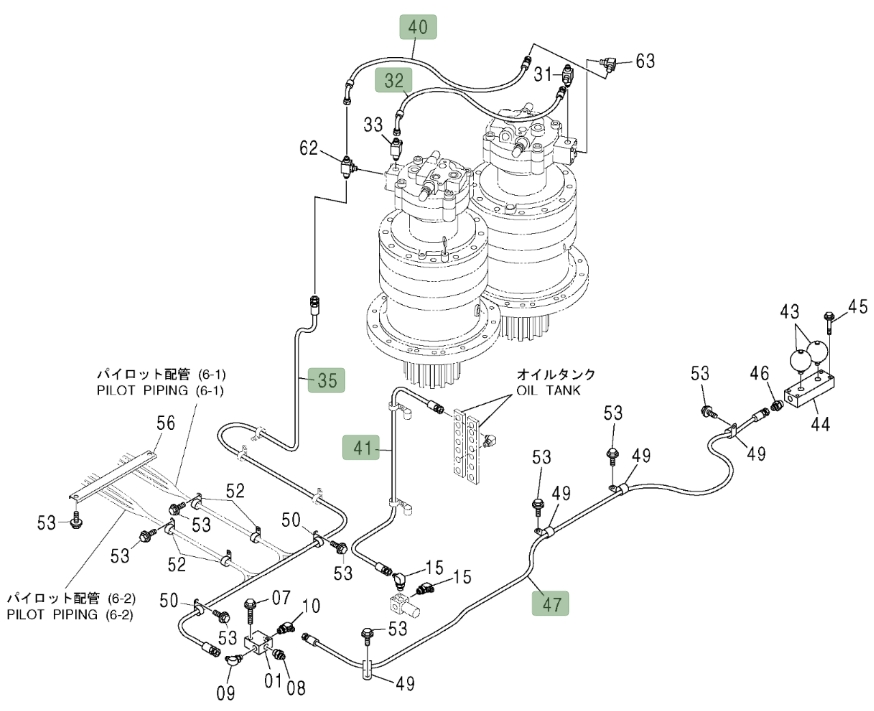

Installation diagram — Pipe No. 47

Locate Pipe No. 47 in the diagram, then confirm part number 4431841 before removing the hose.

Hitachi ZX800 installation diagram showing hydraulic hose 4431841 at Pipe No. 47 — Hitachi ZX800Part 4431841 · Pipe No. 47Open full-size diagram

Repair specifications

Part number: 4431841
Diagram pipe number: 47
Installation route: 蓄能器~过渡阀块(液压油箱旁)
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,150 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

4470091

Installation route: 进回油阀~过渡阀块(装载踏板)

Length: 300 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 21A

4484246

Installation route: 装载踏板~中转接头

Length: 2,900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
