Individual hose record
DS2093300 Hose Repair Specifications
Excavator · Doosan · DX60R · Swing Motor
Finished length420 mm
Locate this hose

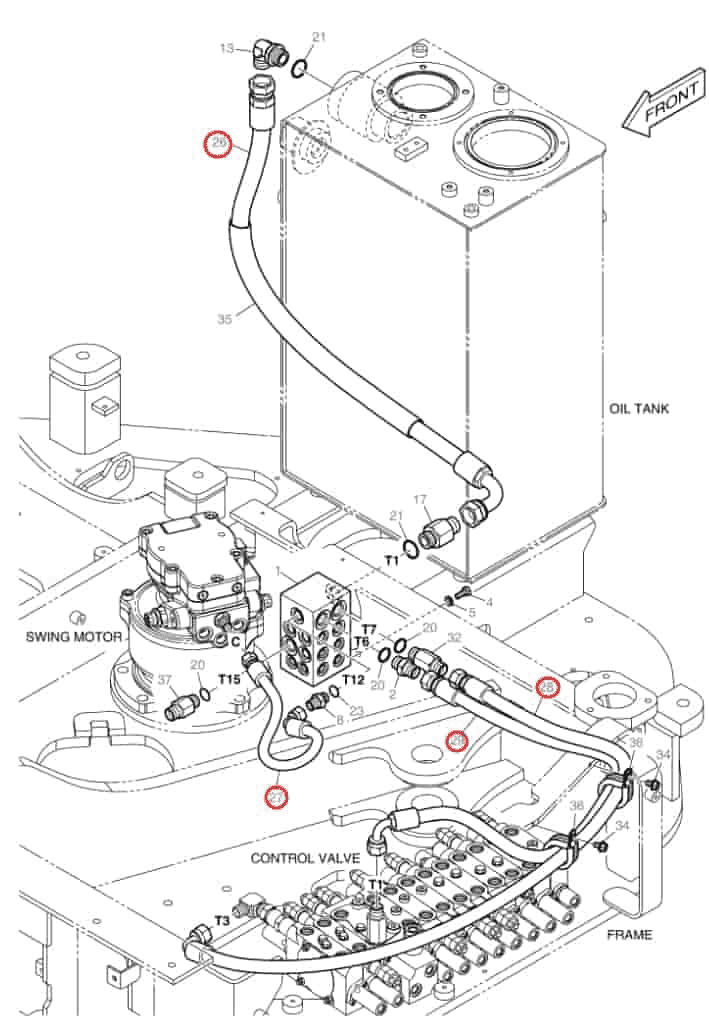

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number DS2093300 before removing the hose.
Repair specifications
- Part number
- DS2093300
- Diagram pipe number
- 27
- Installation route
- 回转马达C口~进回油阀T12口
- Hose specification
- -
- Finished length
- 420 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 1
