Diagram Pipe No. 19
4426417
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,260 mm
- Specification
- DN12;2SN-8;20.5MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
Individual hose record
4426425 Hose Repair Specifications
Excavator · Hitachi · ZX50U · Swivel Joint
Finished length1,340 mm
Locate this hose

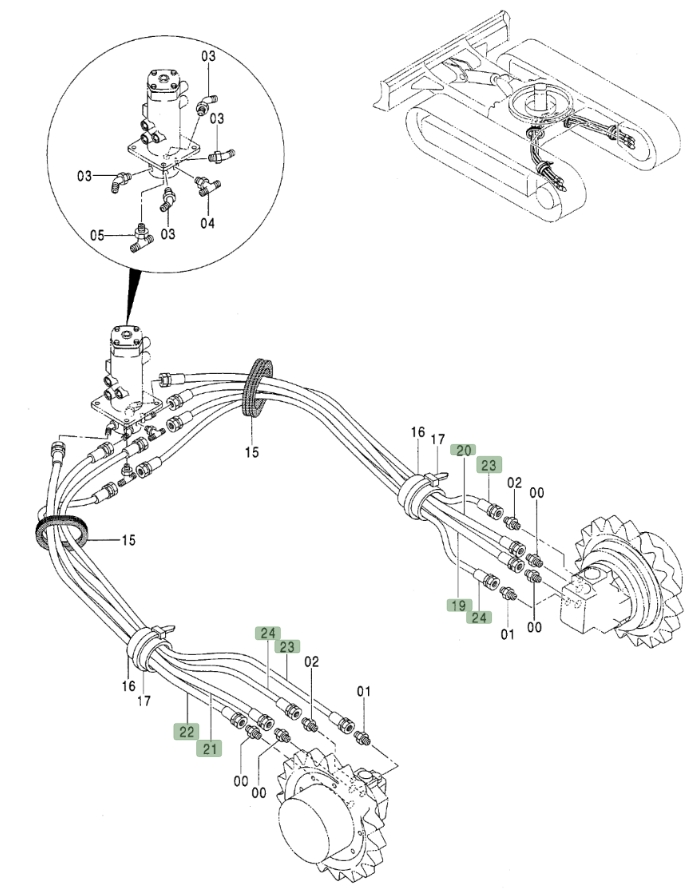

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4426425 before removing the hose.
Repair specifications
- Part number
- 4426425
- Diagram pipe number
- 23
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,340 mm
- Working pressure
- 14 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 24
4426426
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,310 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
