Individual hose record
730502003258 Hose Repair Specifications
Excavator · Sunward · SWE365F · Hydraulic Pump
Finished length660 mm
Locate this hose

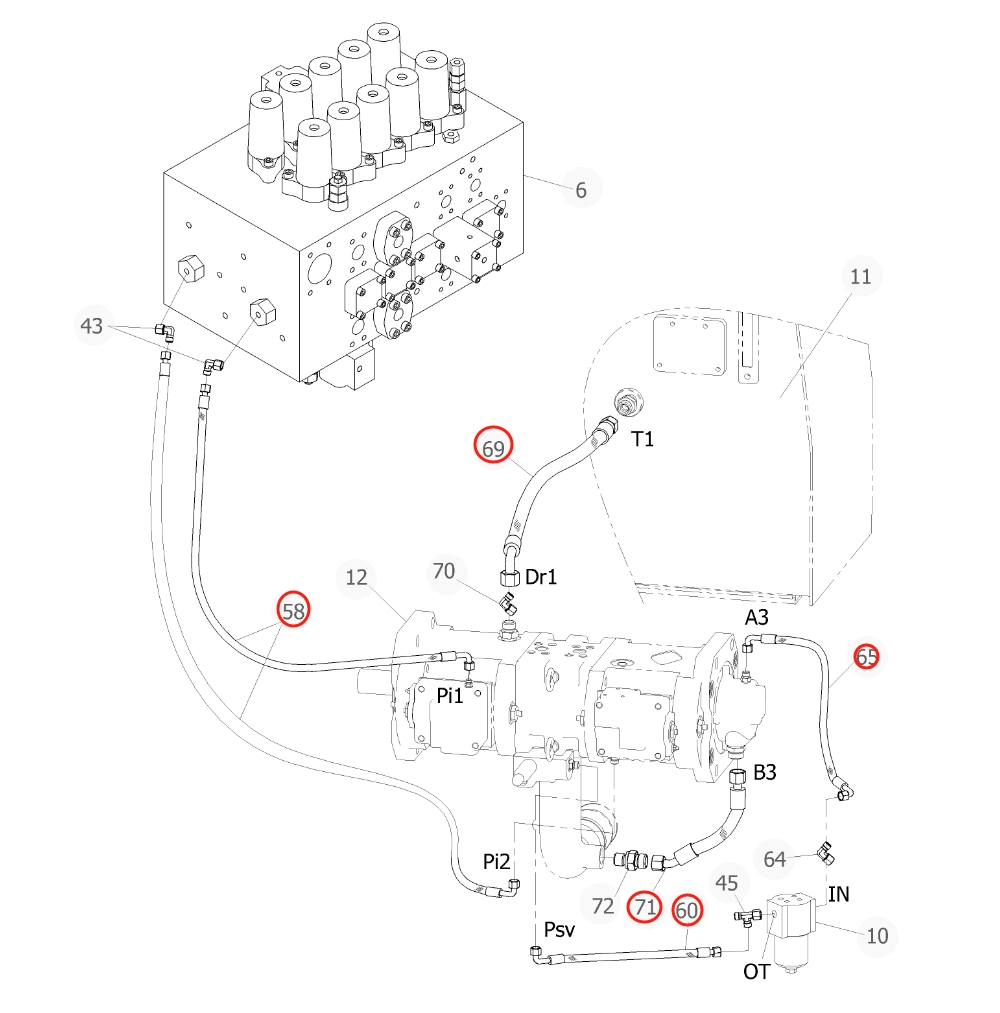

Installation diagram — Pipe No. 65
Locate Pipe No. 65 in the diagram, then confirm part number 730502003258 before removing the hose.
Repair specifications
- Part number
- 730502003258
- Diagram pipe number
- 65
- Installation route
- 先导泵上A3~液压油滤清器IN
- Hose specification
- DN10;1SN-06;20.7MPa
- Finished length
- 660 mm
- Working pressure
- 20.7 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
