Individual hose record
4375909 Hose Repair Specifications
Excavator · Hitachi · EX750-5 · Attachments
Finished length2,800 mm
Locate this hose

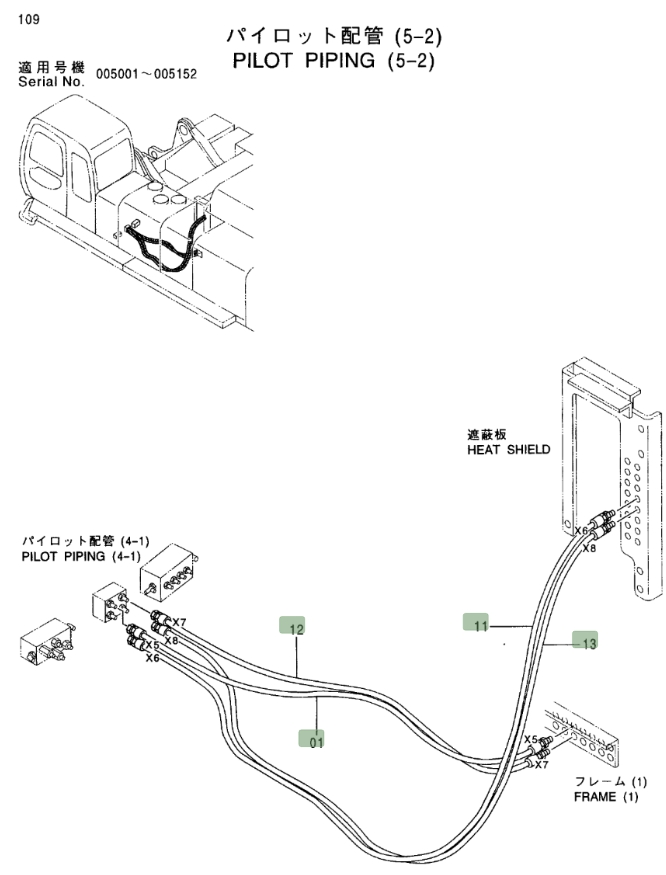

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4375909 before removing the hose.
Repair specifications
- Part number
- 4375909
- Diagram pipe number
- 13
- Installation route
- 过渡阀块(手柄)~接线板(遮蔽板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,800 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Quantity
- 1
