Individual hose record
4689854 Hose Repair Specifications
Excavator · Hitachi · ZX130-6N · Attachments – Other Kits
Finished length530 mm
Locate this hose

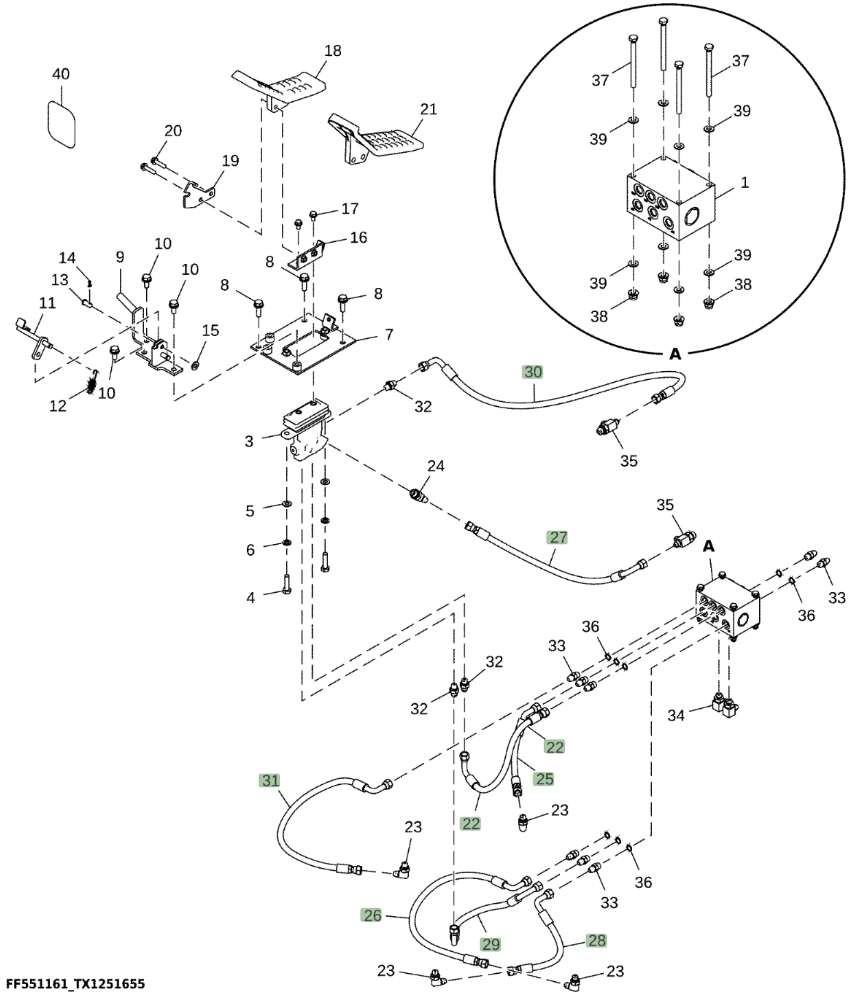

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 4689854 before removing the hose.
Repair specifications
- Part number
- 4689854
- Diagram pipe number
- 27
- Installation route
- 单踏板~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 530 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
