Individual hose record

4658964 Hose Repair Specifications

Excavator · Hitachi · ZX135US-6N · Boom Assembly

Finished length955 mm

Locate this hose

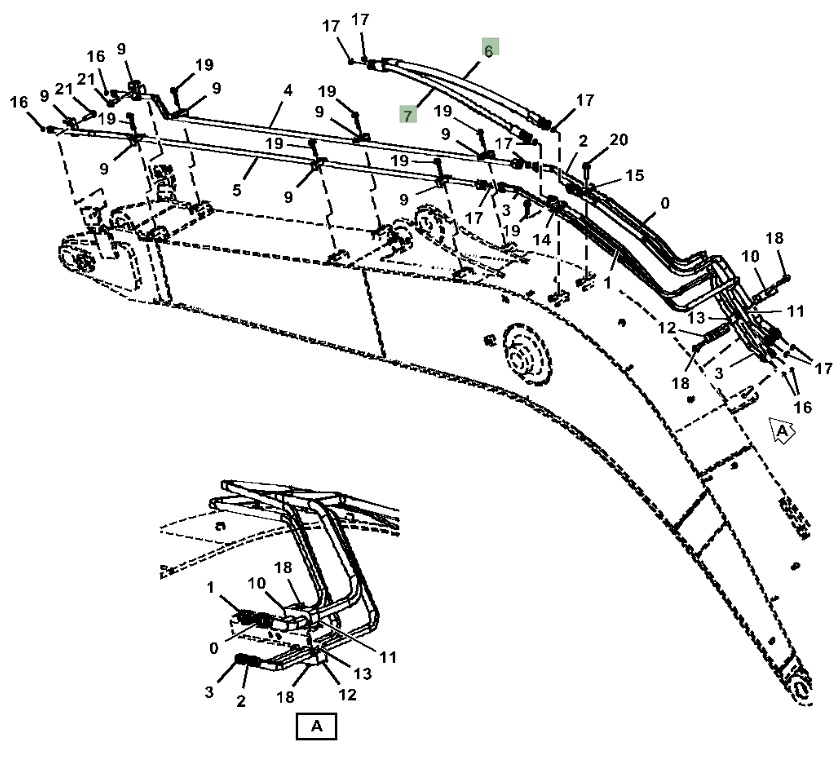

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4658964 before removing the hose.

Part number: 4658964
Diagram pipe number: 7
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN16;4SP-10;38Mpa
Finished length: 955 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 6

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 950 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
