- Length
- 1,700 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
2184-1036D219 Hose Repair Specifications
Excavator · Doosan · DX55 · Swing Motor
Finished length850 mm
Locate this hose

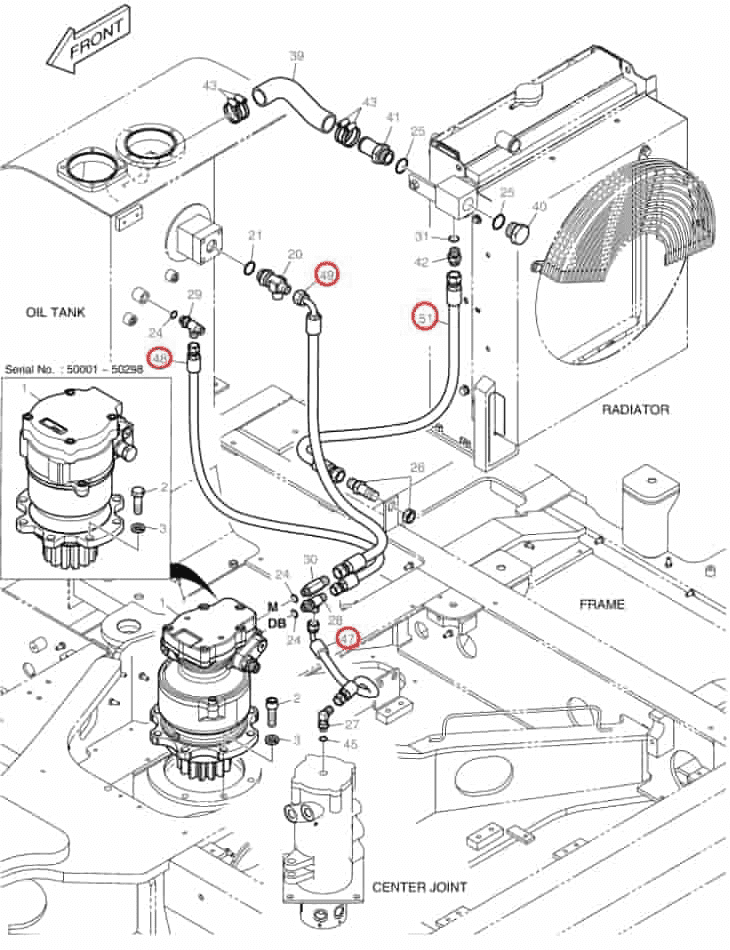

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number 2184-1036D219 before removing the hose.
Repair specifications
- Part number
- 2184-1036D219
- Diagram pipe number
- 49
- Installation route
- 回转马达M口~液压油箱
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 850 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
