Individual hose record

KBV16090 Hose Repair Specifications

Excavator · Case · CX300D LC · Attachments – Breaker

Finished length2,150 mm

Locate this hose

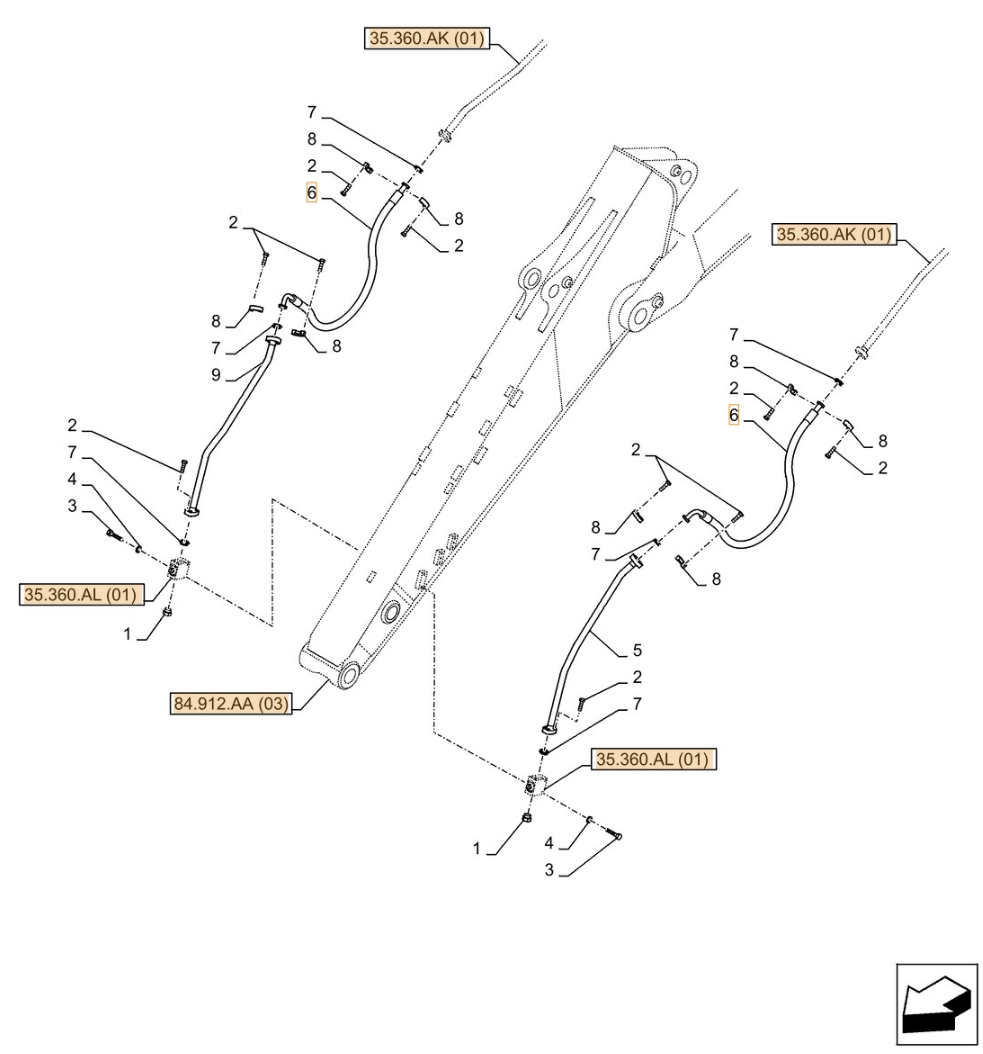

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number KBV16090 before removing the hose.

Case CX300D LC installation diagram showing hydraulic hose KBV16090 at Pipe No. 6 — **Case CX300D LC**Part KBV16090 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: KBV16090
Diagram pipe number: 6
Installation route: 小臂破碎器截止阀
Hose specification: DN32;6SH-20;42MPa
Finished length: 2,150 mm
Working pressure: 42 MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 1

KHJ2050

Installation route: 右过渡阀块(破碎器)~液压油箱

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

KHJ2089

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 8

KHJ2089

Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 2

KHJ2050

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 2

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 1

KHJ2092

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KHJ12240

Installation route: 破碎器踏板~分配阀后左

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KHJ11480

Installation route: 电磁阀(破碎器踏板)~左过渡阀块(破碎器)

Length: 3,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
