Individual hose record

730502000463 Hose Repair Specifications

Excavator · Sunward · SWE225E-3H · Control Valve

Finished length700 mm

Locate this hose

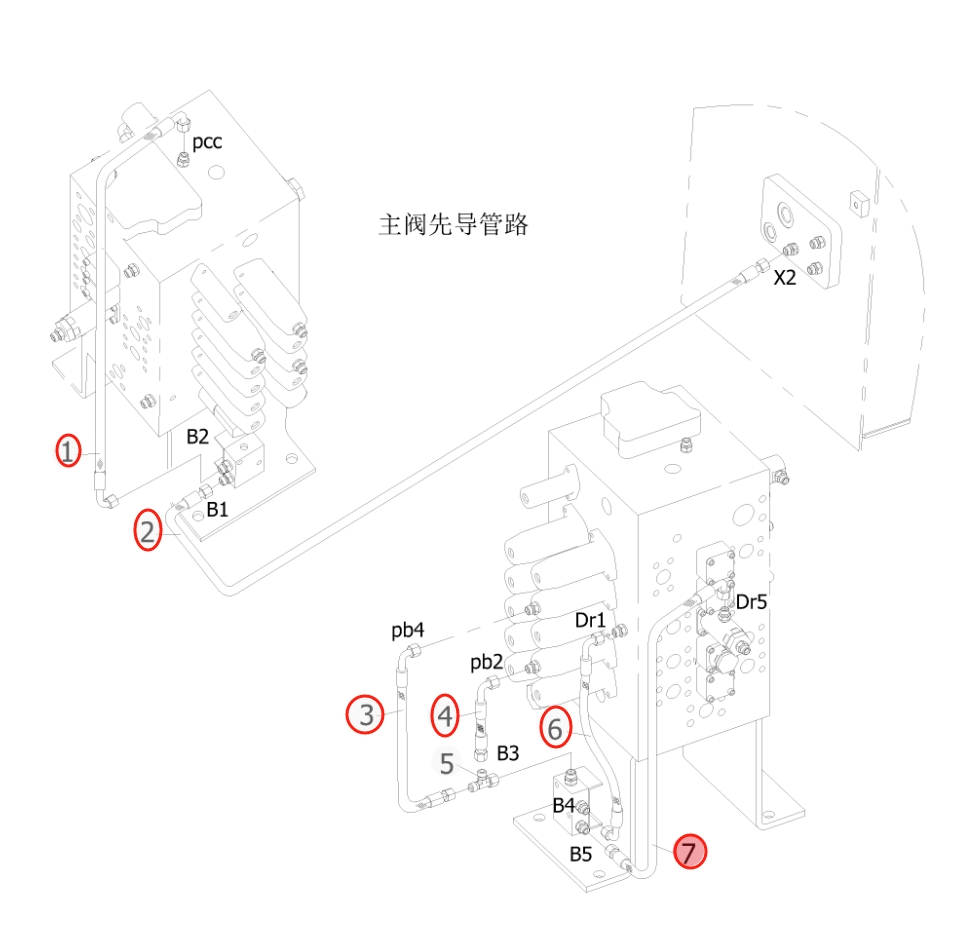

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 730502000463 before removing the hose.

Sunward SWE225E-3H installation diagram showing hydraulic hose 730502000463 at Pipe No. 7 — Sunward SWE225E-3HPart 730502000463 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 730502000463
Diagram pipe number: 7
Installation route: 分配阀左DR5~过渡阀块B5(分配阀下)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 700 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

730502000704

Installation route: 分配阀PD8~模式切换阀Q4

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 10

730502001016

Installation route: 分配阀左PI1~分配阀后PA8

Length: 780 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 7

730502000928

Installation route: 分配阀PB5~模式切换阀Q2

Length: 1,600 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 13

730502000425

Installation route: 分配阀后DR3~液压油箱X3

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 7

730502000928

Installation route: 分配阀PA5~模式切换阀Q6

Length: 1,600 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
