Individual hose record

KHJ2292 Hose Repair Specifications

Excavator · Case · CX490C LC · Hydraulic Pump

Finished length280 mm

Locate this hose

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number KHJ2292 before removing the hose.

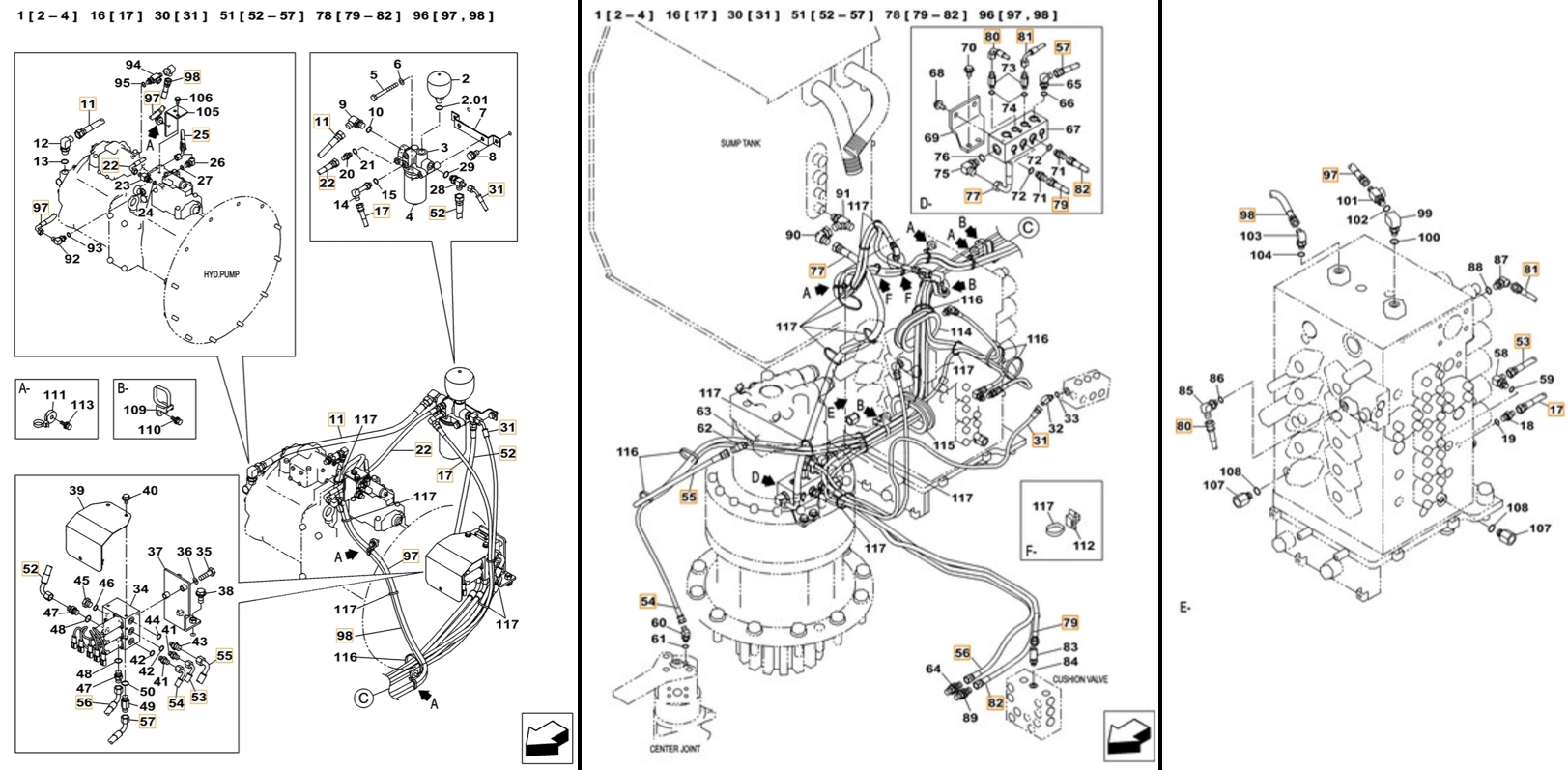

Case CX490C LC installation diagram showing hydraulic hose KHJ2292 at Pipe No. 25
Case CX490C LCPart KHJ2292 · Pipe No. 25Open full-size diagram

Repair specifications

Part number
KHJ2292
Diagram pipe number
25
Installation route
液压泵左~液压泵右
Hose specification
DN6;1SN-04;22.5MPa
Finished length
280 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity
1
