Individual hose record

4384383 Hose Repair Specifications

Excavator · Hitachi · ZX250 · Boom Assembly

Finished length790 mm

Locate this hose

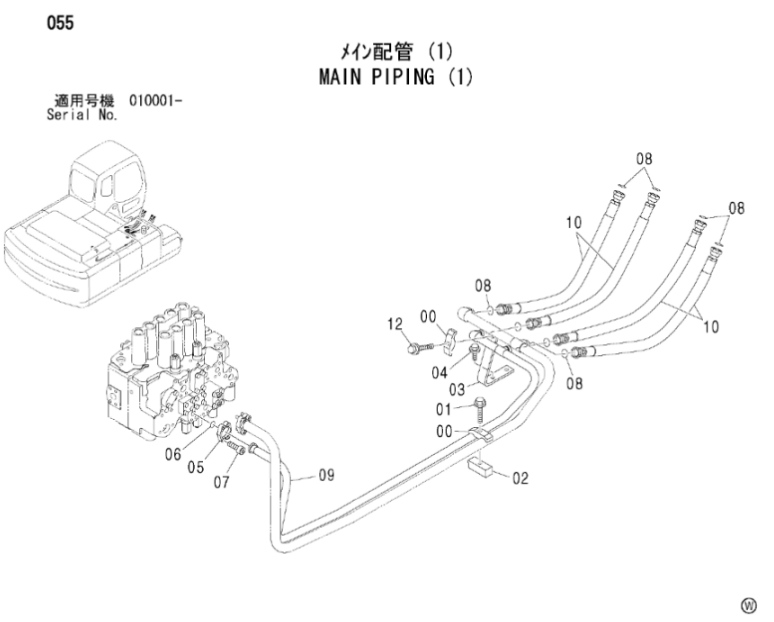

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4384383 before removing the hose.

Part number: 4384383
Diagram pipe number: 10
Installation route: 大臂油缸
Hose specification: DN19;4SH-12;42MPa
Finished length: 790 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 13

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 900 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 32

Installation route: 铲斗油缸右

Length: 1,600 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
