Individual hose record

KHJ2249 Hose Repair Specifications

Excavator · Case · CX210C-8 · Control Valve

Finished length950 mm

Locate this hose

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KHJ2249 before removing the hose.

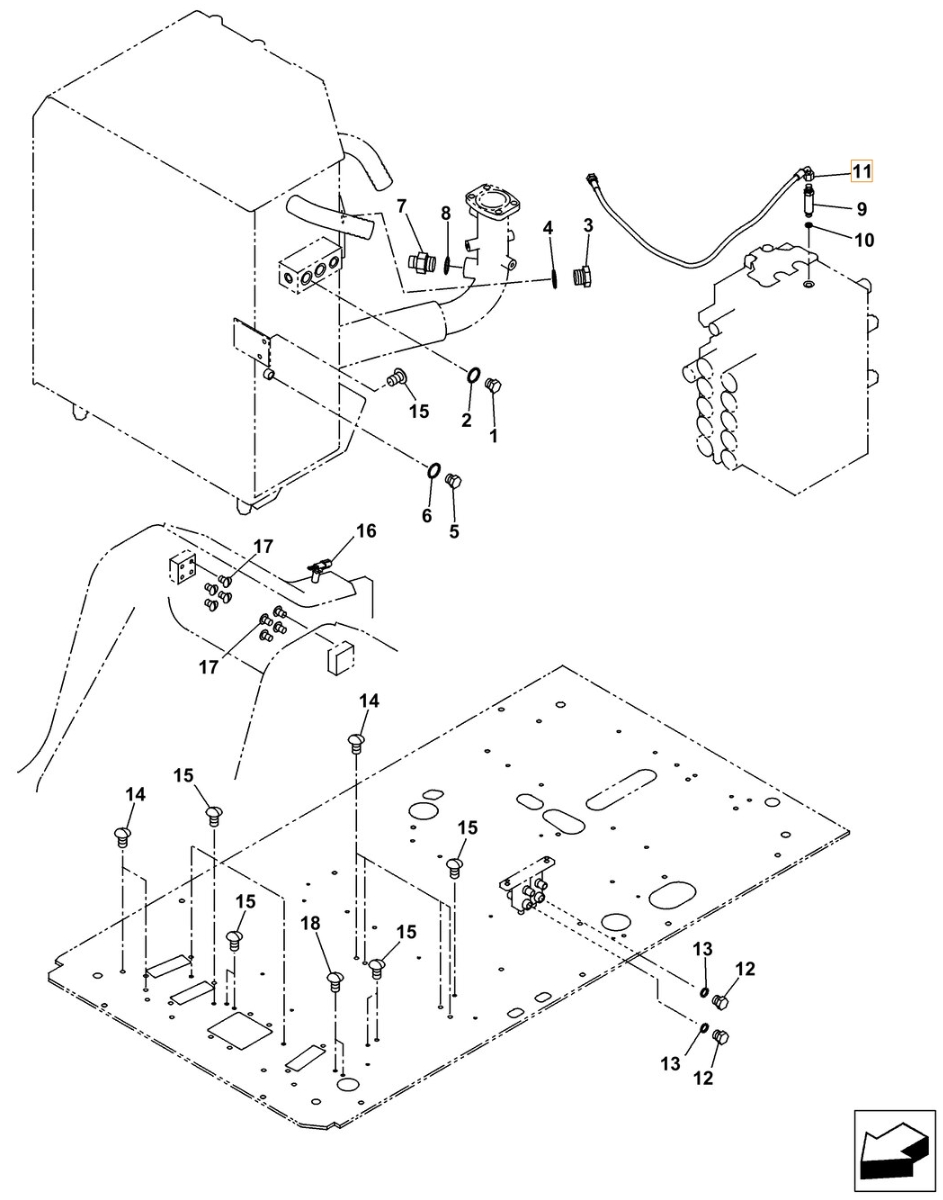

Case CX210C-8 installation diagram showing hydraulic hose KHJ2249 at Pipe No. 11 — **Case CX210C-8**Part KHJ2249 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: KHJ2249
Diagram pipe number: 11
Installation route: 分配阀上~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 83

KHJ2309

Installation route: 分配阀后~分配阀右

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 81

KHJ2163

Installation route: 分配阀前~分配阀右

Length: 620 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 82

KHJ2190

Installation route: 分配阀前~分配前

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 45

KHJ14920

Installation route: 分配阀前~电磁阀

Length: 1,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 113

KHJ2309

Installation route: 分配阀前~电磁阀(分配阀上)

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 46

KHJ2097

Installation route: 分配阀前~电磁阀

Length: 1,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 84

KHJ11170

Installation route: 分配阀前~液压油箱

Length: 1,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 109

KHJ2134

Installation route: 分配阀后~液压油箱

Length: 2,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications
