Individual hose record
4668896 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Hydraulic Pump
Finished length700 mm
Locate this hose

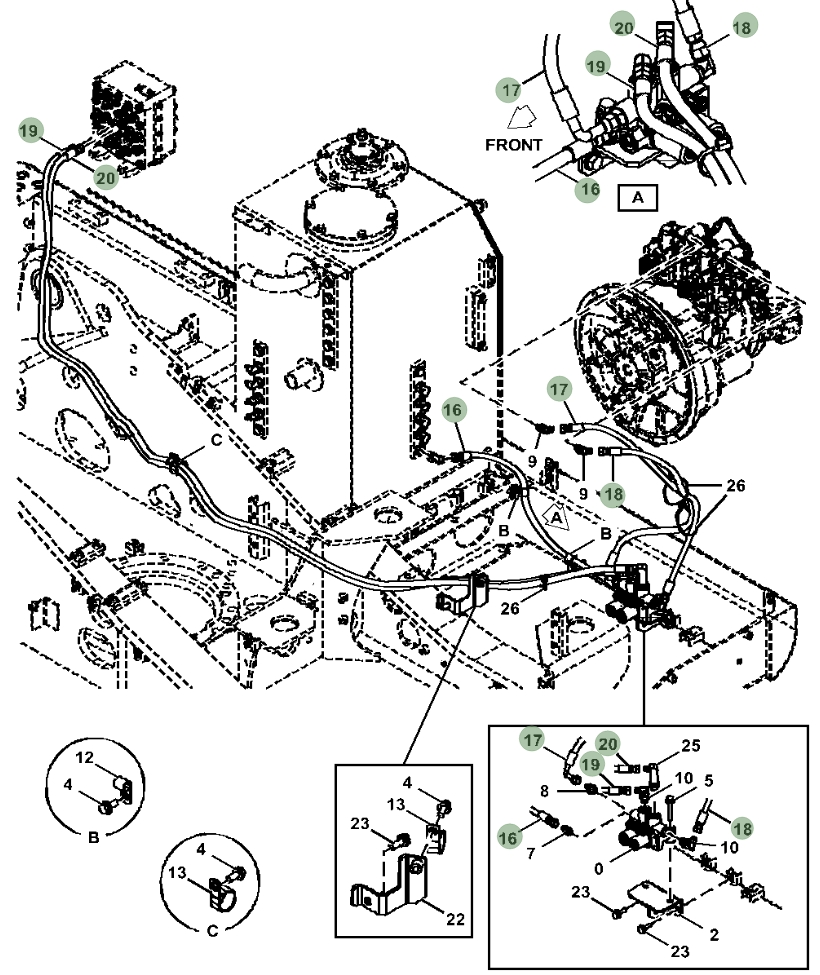

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4668896 before removing the hose.
Repair specifications
- Part number
- 4668896
- Diagram pipe number
- 18
- Installation route
- 液压泵~电磁阀(液压泵)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
