Individual hose record

4265833 Hose Repair Specifications

Excavator · Hitachi · ZX210LC-5N · Boom Assembly

Finished length1,300 mm

Locate this hose

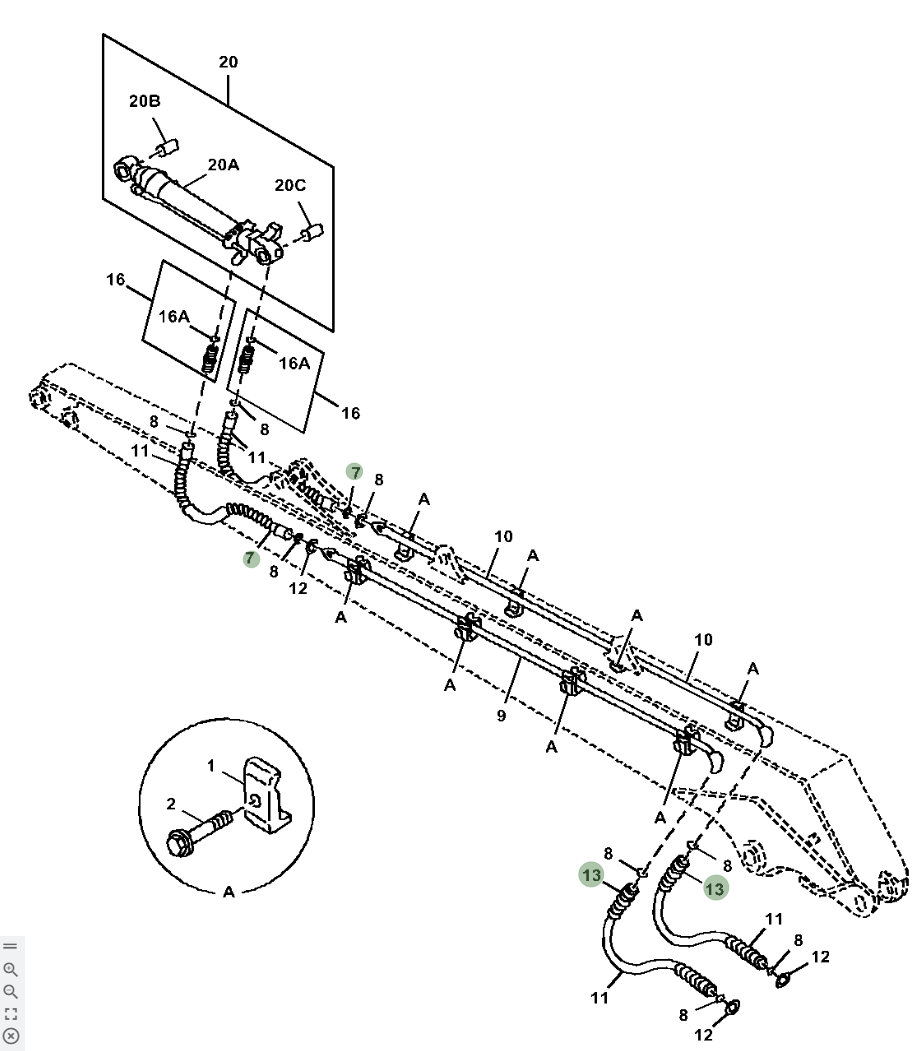

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4265833 before removing the hose.

Hitachi ZX210LC-5N installation diagram showing hydraulic hose 4265833 at Pipe No. 13 — **Hitachi ZX210LC-5N**Part 4265833 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4265833
Diagram pipe number: 13
Installation route: 铲斗油缸(后段)
Hose specification: DN19;4SP-12;31Mpa
Finished length: 1,300 mm
Working pressure: 31 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 14

4660944

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 900 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

4676586

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 880 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 21

4286269

Installation route: 大臂(中段)~大臂(后段)

Length: 1,450 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

4286268

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 950 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 22

4286816

Installation route: 大臂(中段)~大臂(后段)

Length: 1,450 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

9234888

Installation route: 大臂左3

Length: 1,300 mm
Specification: DN16;4SP-10;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 7

4676587

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 880 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

4307644

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 920 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
