Individual hose record
4707585 Hose Repair Specifications
Excavator · Hitachi · ZX260F-FE-6N · Pedal
Finished length2,100 mm
Locate this hose

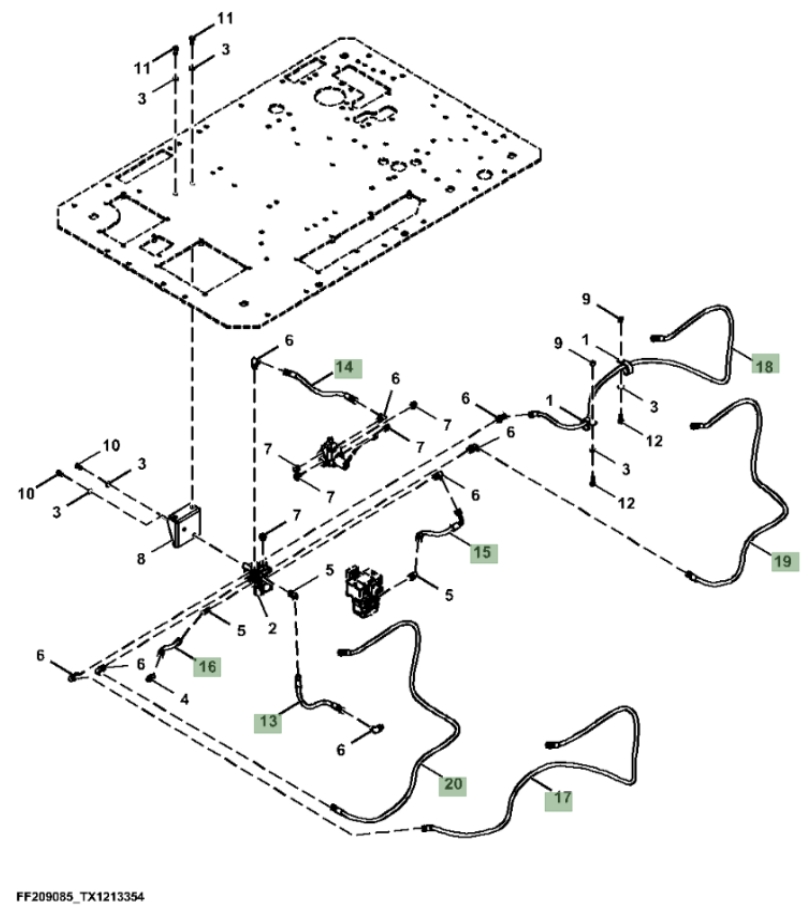

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4707585 before removing the hose.
Repair specifications
- Part number
- 4707585
- Diagram pipe number
- 18
- Installation route
- 中转接头~过渡阀块(行走踏板)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,100 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
