Individual hose record

DS2012697 Hose Repair Specifications

Excavator · Doosan · DX150LC-9C · Swivel Joint

Finished length620 mm

Locate this hose

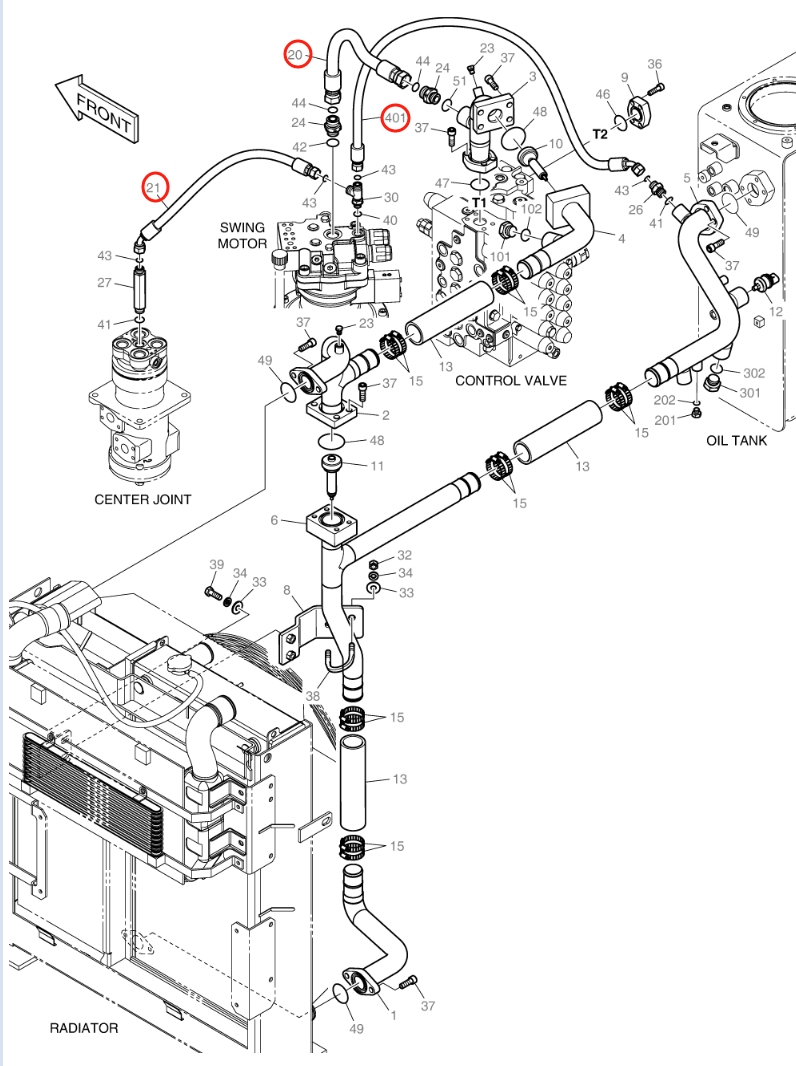

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number DS2012697 before removing the hose.

Doosan DX150LC-9C installation diagram showing hydraulic hose DS2012697 at Pipe No. 21 — **Doosan DX150LC-9C**Part DS2012697 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: DS2012697
Diagram pipe number: 21
Installation route: 回转接头~回转马达上
Hose specification: DN13;1SN-08;16MPa
Finished length: 620 mm
Working pressure: 16 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

DS2017104

Installation route: 回转接头~右行走马达

Length: 1,810 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications

Hose record

DS20132061

Installation route: 回转接头~分配阀

Length: 730 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS20132645

Installation route: 回转接头~分配阀

Length: 930 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 19

DS2012893

Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达

Length: 1,710 mm
Specification: DN13;1SN-08;16MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

DS2017096

Installation route: 回转接头~右行走马达

Length: 1,730 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications

Diagram Pipe No. 10

DS2017096

Installation route: 回转接头~左行走马达

Length: 1,730 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications

Hose record

DS20132356

Installation route: 回转接头~分配阀

Length: 800 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS2120116

Installation route: 回转接头~电磁阀

Length: 1,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications
