Individual hose record
4458065 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-5N · Control Lever
Finished length2,300 mm
Locate this hose

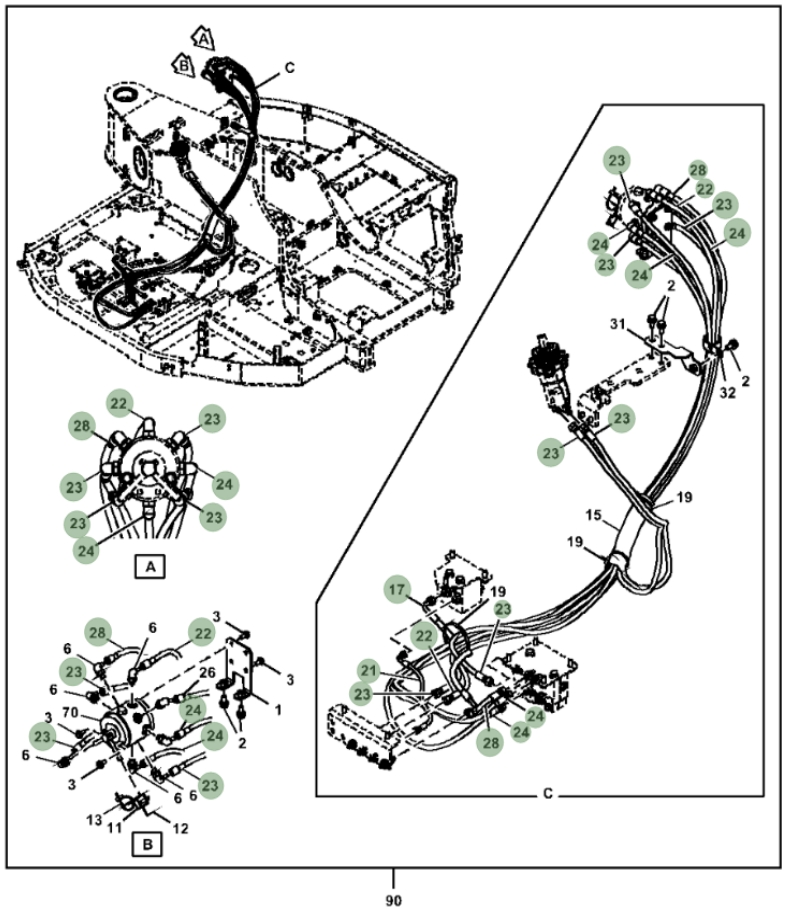

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4458065 before removing the hose.
Repair specifications
- Part number
- 4458065
- Diagram pipe number
- 24
- Installation route
- 模式转换阀~过渡阀块(中转接头)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,300 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 2
