Individual hose record
4642276 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-3 · Boom Assembly
Finished length1,650 mm
Locate this hose

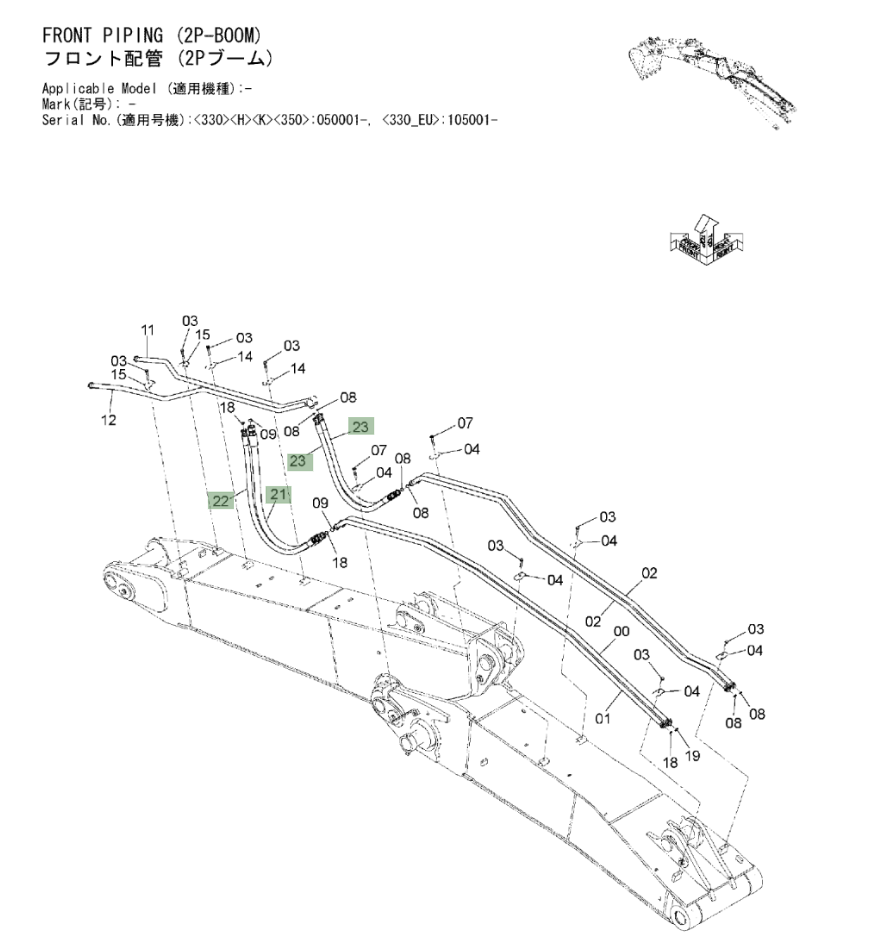

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4642276 before removing the hose.
Repair specifications
- Part number
- 4642276
- Diagram pipe number
- 21
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN32;4SP-20;35Mpa
- Finished length
- 1,650 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
