Individual hose record

KRJ16320 Hose Repair Specifications

Excavator · Case · CX210C LR · Hydraulic Pump

Finished length1,070 mm

Locate this hose

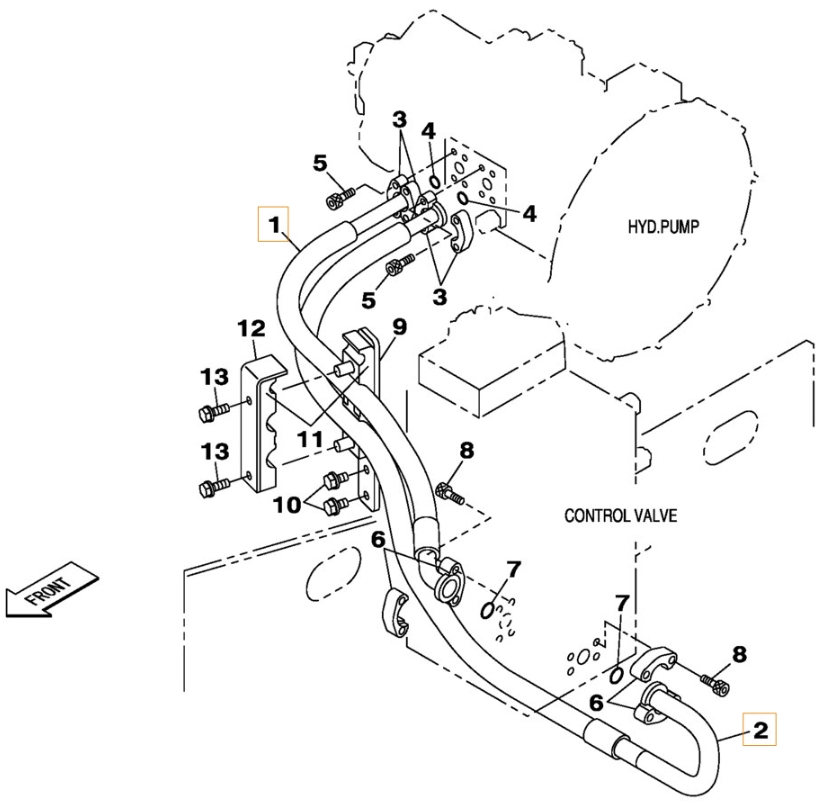

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number KRJ16320 before removing the hose.

Case CX210C LR installation diagram showing hydraulic hose KRJ16320 at Pipe No. 1 — **Case CX210C LR**Part KRJ16320 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: KRJ16320
Diagram pipe number: 1
Installation route: 液压泵~分配阀(进油)
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,070 mm
Working pressure: 32.5 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 98

KHJ1231

Installation route: 液压泵右~分配阀右

Length: 1,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KHJ2342

Installation route: 液压泵左~液压泵

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 97

KHJ2692

Installation route: 液压泵左~分配阀左

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 17

KHJ2036

Installation route: 液压泵~先导滤芯

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ1306

Installation route: 液压泵~先导滤芯

Length: 550 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KSJ12940

Installation route: 液压泵~吸油铁管

Length: 910 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 3

KAJ2420

Installation route: 液压泵~液压油箱

Length: 570 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 52

KHJ2087

Installation route: 液压泵~电磁阀

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
