Individual hose record
4451914 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Engine Oil Lines
Finished length750 mm
Locate this hose

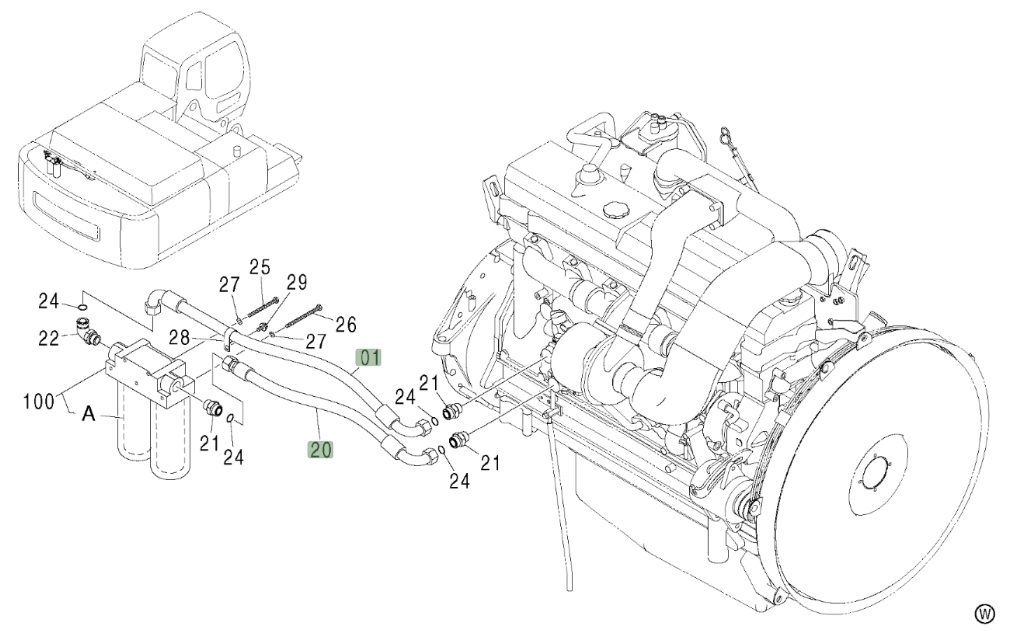

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 4451914 before removing the hose.
Repair specifications
- Part number
- 4451914
- Diagram pipe number
- 20
- Installation route
- 机油管
- Hose specification
- DN25;1SN-16;8.8MPa
- Finished length
- 750 mm
- Working pressure
- 8.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
