Individual hose record

4210341 Hose Repair Specifications

Excavator · Hitachi · EX300LC-3C · Attachments – Breaker

Finished length1,200 mm

Locate this hose

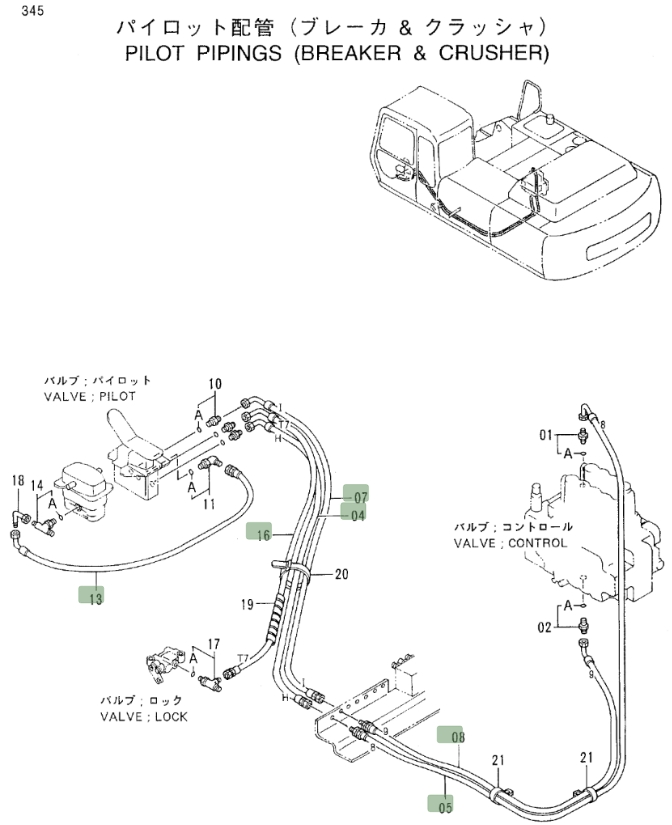

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4210341 before removing the hose.

Hitachi EX300LC-3C installation diagram showing hydraulic hose 4210341 at Pipe No. 13 — **Hitachi EX300LC-3C**Part 4210341 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4210341
Diagram pipe number: 13
Installation route: 破碎器踏板~行走踏板
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,200 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
