Individual hose record
4200477 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3C · Attachments – Breaker
Finished length700 mm
Locate this hose

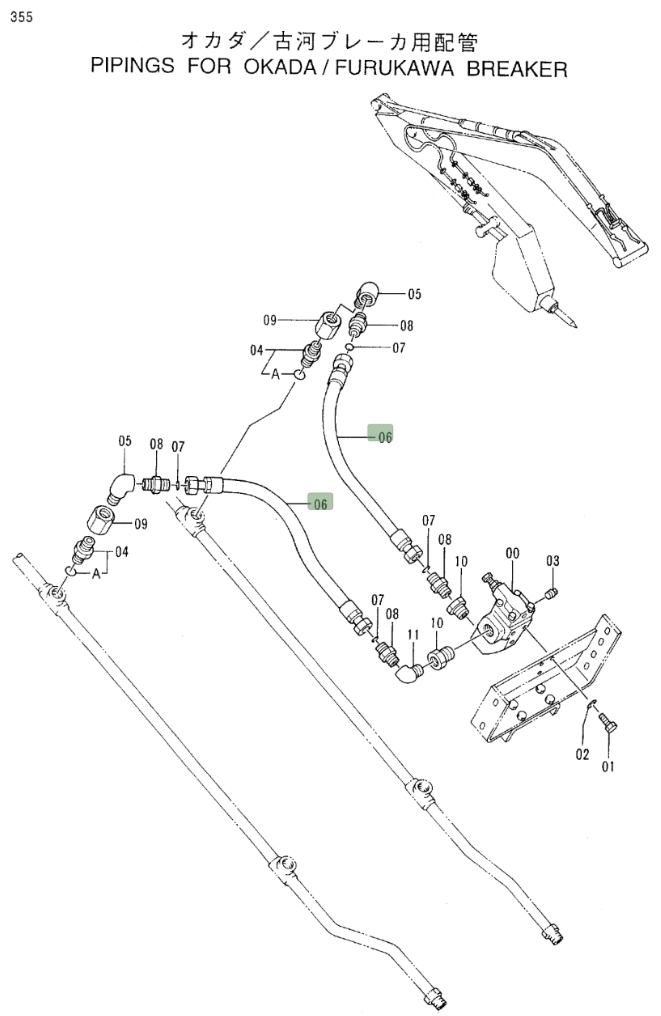

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4200477 before removing the hose.
Repair specifications
- Part number
- 4200477
- Diagram pipe number
- 6
- Installation route
- 大臂(后段)~卸压安全阀(破碎器)
- Hose specification
- DN25;4SP-16;32Mpa
- Finished length
- 700 mm
- Working pressure
- 32 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
