Individual hose record

KHJ2082 Hose Repair Specifications

Excavator · Case · CX500C-8 LC ME · Grease Lines

Finished length3,400 mm

Locate this hose

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number KHJ2082 before removing the hose.

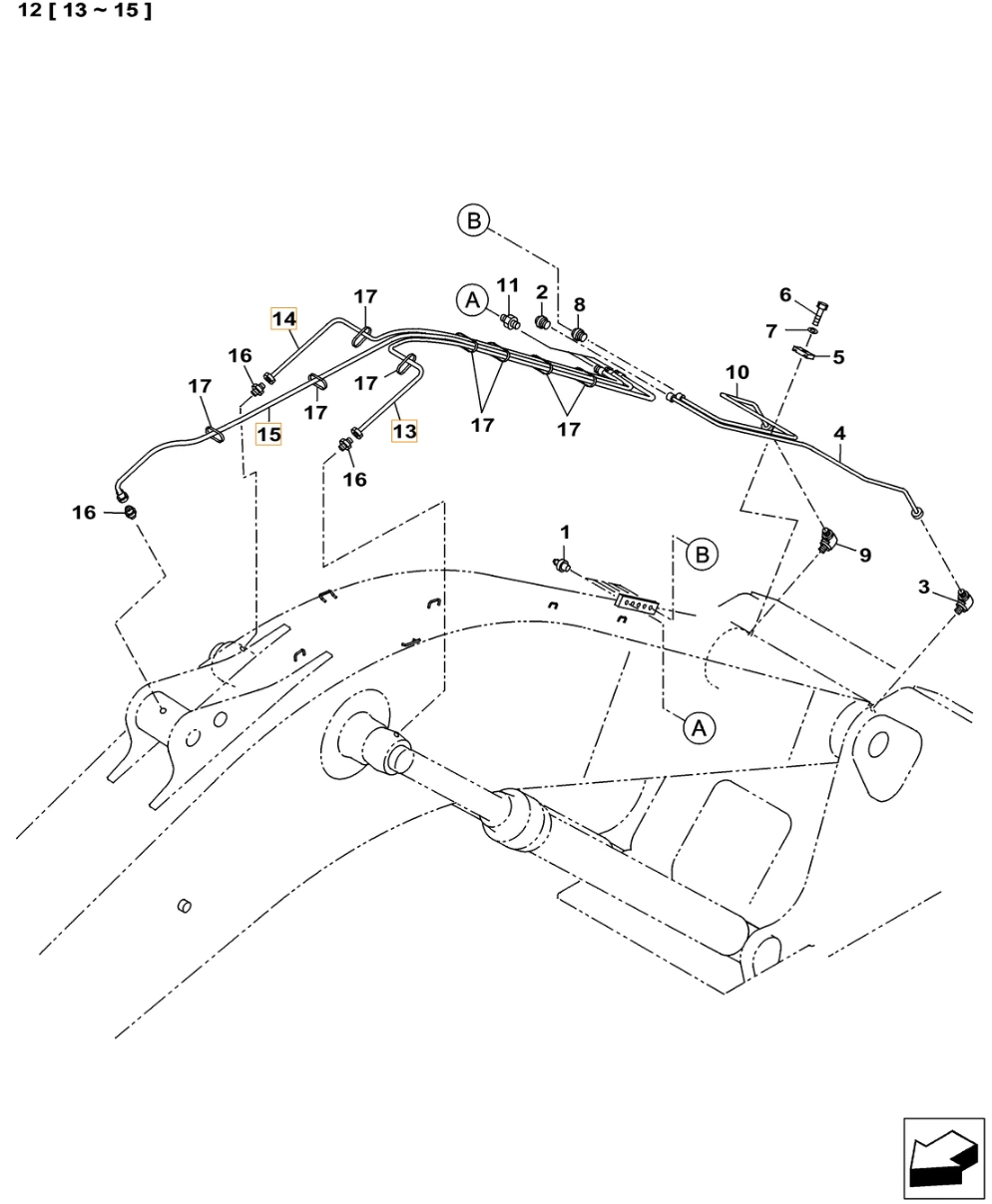

Case CX500C-8 LC ME installation diagram showing hydraulic hose KHJ2082 at Pipe No. 14
Case CX500C-8 LC MEPart KHJ2082 · Pipe No. 14Open full-size diagram

Repair specifications

Part number
KHJ2082
Diagram pipe number
14
Installation route
Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification
DN6;1SN-04;22.5MPa
Finished length
3,400 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
1
