Individual hose record

DS2113003 Hose Repair Specifications

Excavator · Doosan · DX140W-5 · Control Lever

Finished length1,950 mm

Locate this hose

Installation diagram — Pipe No. 11

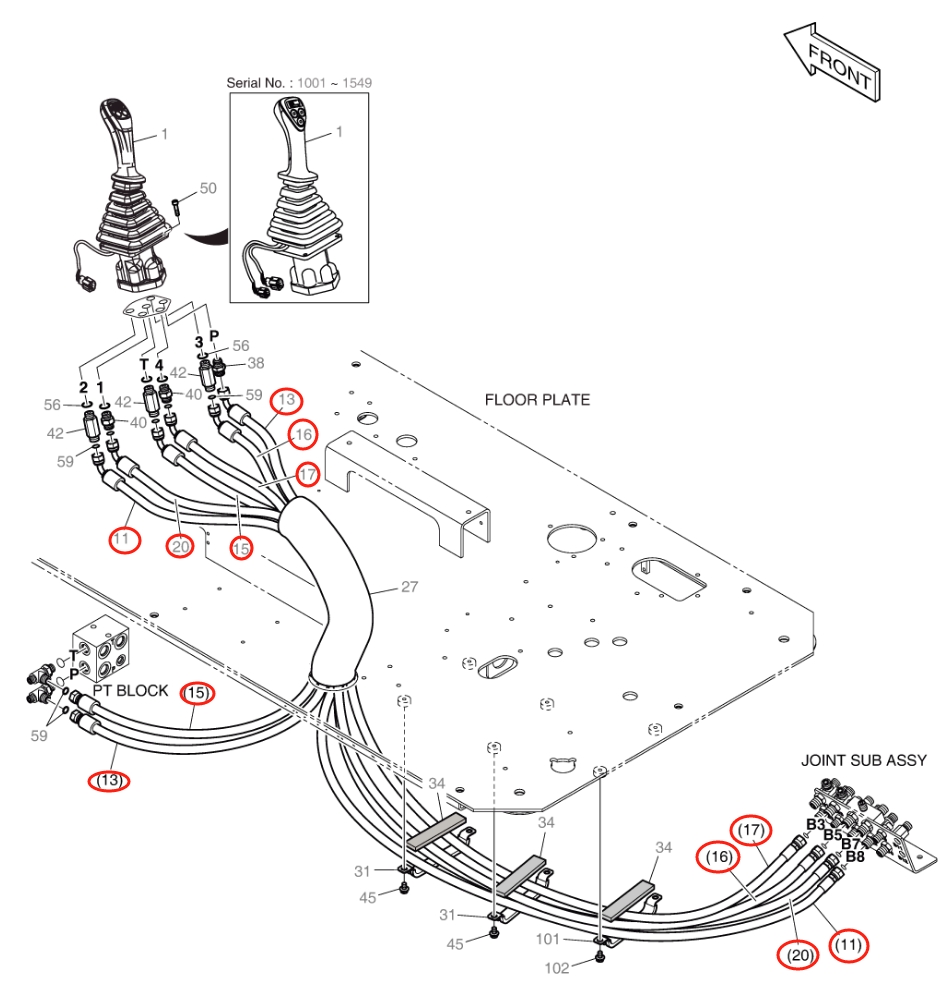

Locate Pipe No. 11 in the diagram, then confirm part number DS2113003 before removing the hose.

Doosan DX140W-5 installation diagram showing hydraulic hose DS2113003 at Pipe No. 11 — **Doosan DX140W-5**Part DS2113003 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: DS2113003
Diagram pipe number: 11
Installation route: 左手柄2口~中转接头B8口
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,950 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 75°英制内螺纹60°外锥
Quantity: 1
