Individual hose record

DS2121297 Hose Repair Specifications

Excavator · Doosan · DX140W-5 · Control Lever

Finished length720 mm

Locate this hose

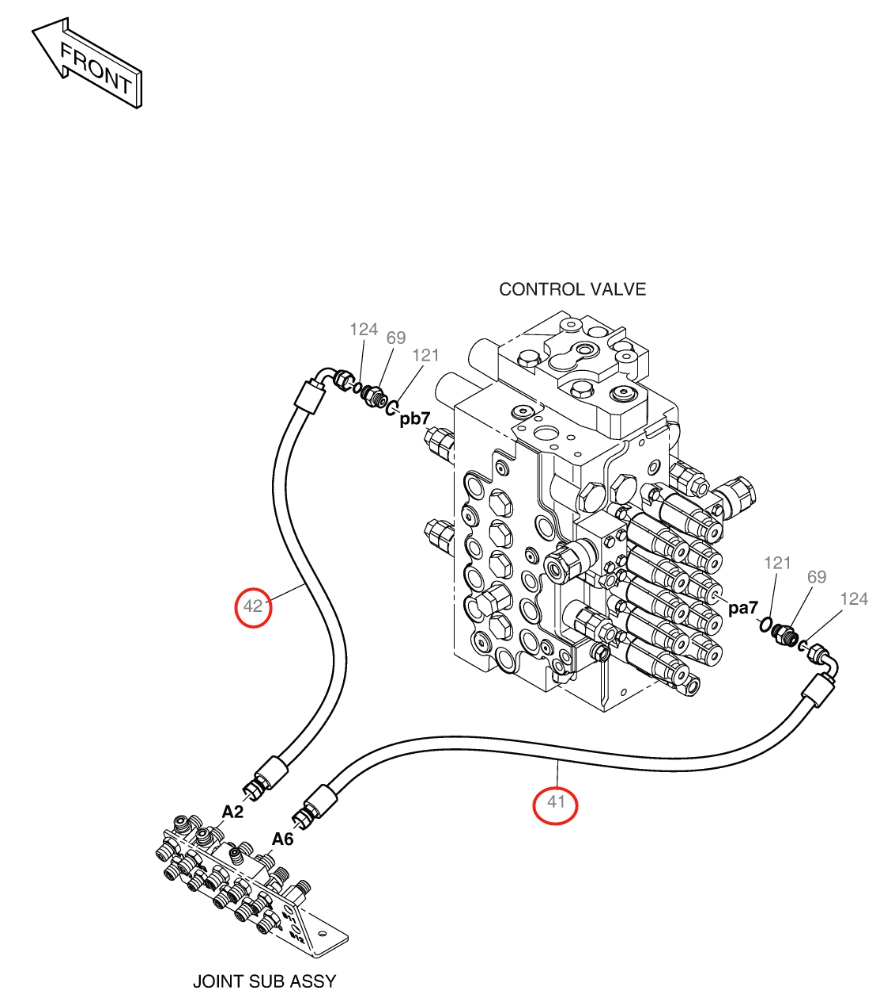

Installation diagram — Pipe No. 41

Locate Pipe No. 41 in the diagram, then confirm part number DS2121297 before removing the hose.

Doosan DX140W-5 installation diagram showing hydraulic hose DS2121297 at Pipe No. 41 — **Doosan DX140W-5**Part DS2121297 · Pipe No. 41Open full-size diagram

Repair specifications

Part number: DS2121297
Diagram pipe number: 41
Installation route: 中转接头A6口~分配阀PA7口
Hose specification: DN10;1SN-06;18MPa
Finished length: 720 mm
Working pressure: 18 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

DS2121006

Installation route: 中转接头~分配阀PA1口

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

DS2113031

Installation route: 左手柄3口~中转接头B5口

Length: 1,910 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 70°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 39

DS2121219

Installation route: 中转接头A1口~分配阀PC2口

Length: 1,240 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

DS2113001

Installation route: 右手柄P口~进回油阀P口

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 70°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

DS2113039

Installation route: 左手柄4口~中转接头B3口

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 70°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

DS2121004

Installation route: 中转接头~电磁阀P口

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

DS2121154

Installation route: 中转接头~分配阀PB3口

Length: 620 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

DS2113003

Installation route: 左手柄2口~中转接头B8口

Length: 1,950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 75°英制内螺纹60°外锥

View full repair specifications
