Individual hose record
4455830 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Control Lever
Finished length2,100 mm
Locate this hose

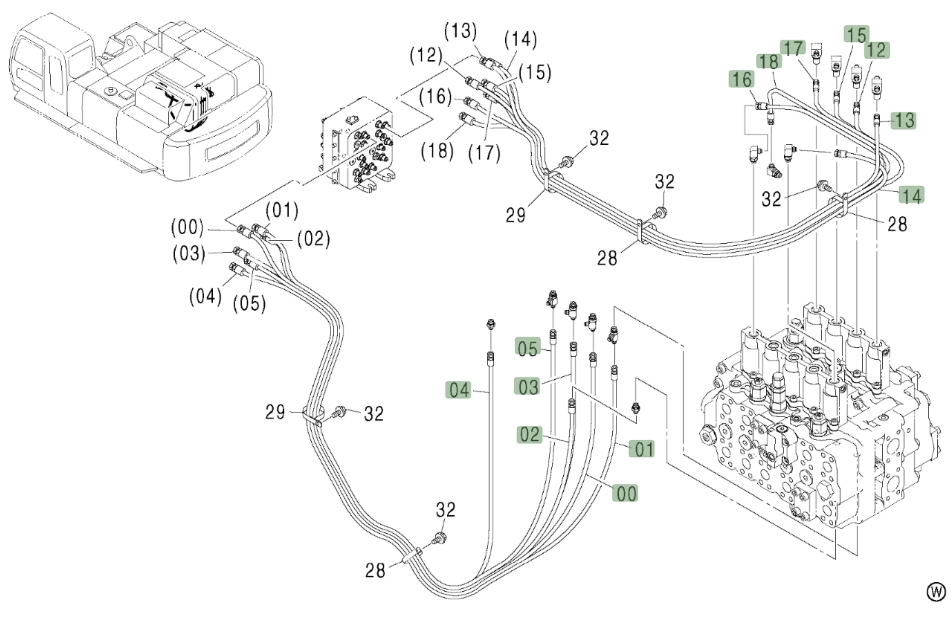

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4455830 before removing the hose.
Repair specifications
- Part number
- 4455830
- Diagram pipe number
- 12
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 2,100 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Quantity
- 1
