Individual hose record
4456136 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Control Lever
Finished length2,750 mm
Locate this hose

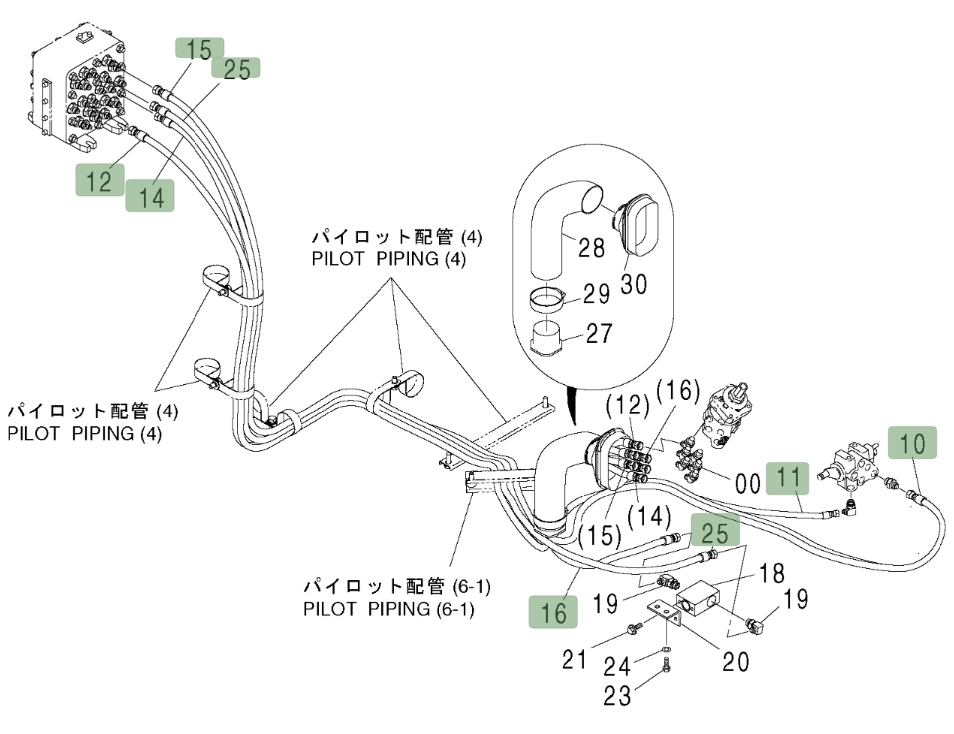

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4456136 before removing the hose.
Repair specifications
- Part number
- 4456136
- Diagram pipe number
- 25
- Installation route
- 中转接头~过渡阀块(手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,750 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
