4394213 Hose Repair Specifications

Excavator · Hitachi · EX80-5 · Attachments

Finished length1,100 mm

Locate this hose

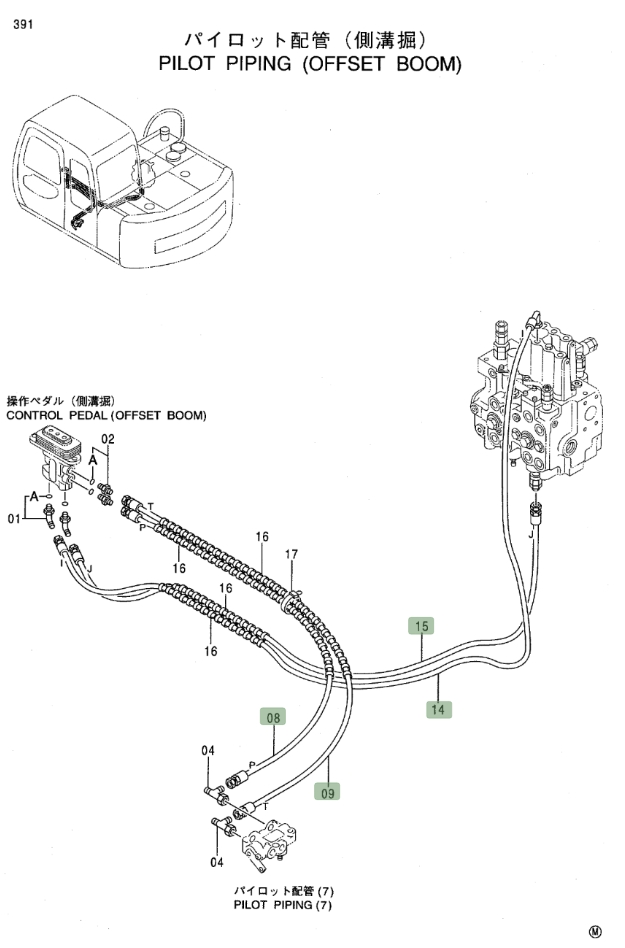

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4394213 before removing the hose.

Hitachi EX80-5 installation diagram showing hydraulic hose 4394213 at Pipe No. 8 — Hitachi EX80-5Part 4394213 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4394213
Diagram pipe number: 8
Installation route: 偏置大臂踏板~进回油阀
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,100 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
